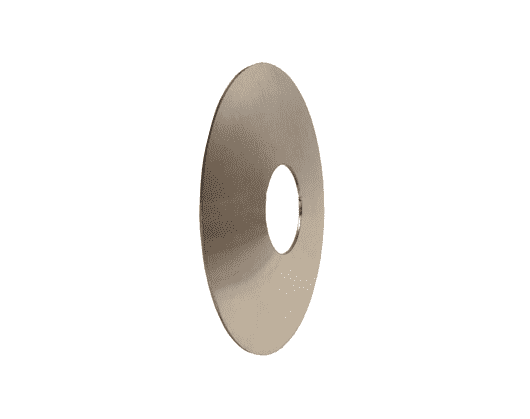

B25-G150500 Dixon 304 Stainless Steel Sanitary Wall Flange - 1-1/2" Tube OD - 5.00 Flange OD

B25-G150500 Dixon Valve 304 Stainless Steel Sanitary Wall Flange - 1-1/2" Tube OD - 5.00 Flange OD

Save $1.10 Save $1.10
$15.21
$15.21 - $15.21
$15.21
$14.11
$14.11 - $14.11
$14.11

Dixon Sanitary Fittings Sanitary Tube Hanger - Wall Flange - 304 Stainless Steel
Specifications for Variant SKU: B25-G150500 Dixon
Part Number Tube OD Dimensions

Wall Thickness
A B
B25-G050300 1/2" .50" 3.00" .065"
B25-G050500 1/2" .50" 5.00" .065"
B25-G075300 3/4" .75" 3.00" .065"
B25-G075500 3/4" .75" 5.00" .065"
B25-G100300 1" 1.00" 3.00" .065"
B25-G100500 1" 1.00" 5.00" .065"
B25-G150500 1-1/2" 1.50" 5.00" .065"
B25-G200500 2" 2.00" 5.00" .065"
B25-G250500 2-1/2" 2.50" 5.00" .065"
B25-G300600 3" 3.00" 6.00" .065"
B25-G400700 4" 4.00" 7.00" .065"
B25-G500800 5" 5.00" 8.00" .065"
B25-G6001000 6" 6.00" 10.00" .065"
B25-G8001200 8" 8.00" 12.00" .065"
B25-G10001400 10" 10.00" 14.00" .065"
B25-G12001600 12" 12.00" 16.00" .065"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
