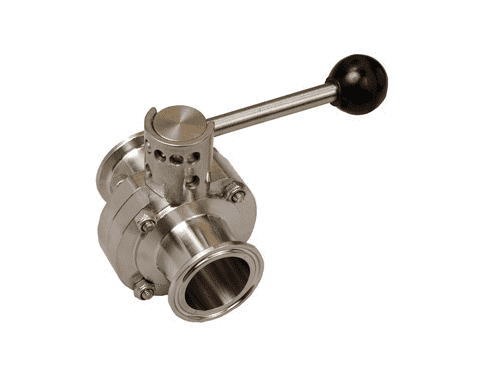

B5107E800CC-A Dixon Valve 8" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and EPDM Seats

B5107E800CC-A Dixon Valve 8" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and EPDM Seats

$0.00 - $0.00
$0.00
$2,853.41
$2,853.41 - $2,853.41
$2,853.41

Dixon Sanitary Valves
Clamp End Butterfly Valve with Pull Handle - [A] - 316L Stainless Steel with EPDM Seats
Specifications for Variant SKU: B5107E800CC-A Dixon
Shape (Orientation): Straight
Ends Configuration: 8in Sanitary Clamp End, 8in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • The pull style handle allows you to set the valve in four different positions simply by pulling and turning.
  • 100% hydraulic tested / 100% inspected.
  • All wetted surfaces are sanitary finished to < 32Ra.
  • Field serviceable (no special tools required).
  • Vacuum rating: 0.4 inches Hg at 68 deg. F.
  • Temperature range: 15 deg. F to 200 deg. F.
  • Clamp style is standard.
Part Number Size Dimensions

Break Torque
(in-lbs.)		 PSI @
68 deg. F		 Weight
(Lbs.)
A B C D E F G
B5101E050CC-A 1/2" 4.4" 2.8" 1.4" 0.9" 3.5" .37" 3.1" 75 140 0.5550
B5101E075CC-A 3/4" 4.4" 2.8" 1.4" 0.9" 3.5" .62" 3.1" 75 140 0.5550
B5101E100CC-A 1" 4.4" 2.8" 1.4" 0.9" 3.5" 0.9" 3.1" 75 140 3.6050
B5101E150CC-A 1-1/2" 4.4" 2.8" 1.4" 0.9" 3.5" 1.4" 3.1" 130 140 3.2050
B5101E200CC-A 2" 4.4" 3.1" 1.4" 0.9" 3.8" 1.9" 3.9" 165 140 4.3750
B5101E250CC-A 2-1/2" 4.4" 3.5" 1.4" 0.9" 3.8" 2.4" 4.6" 210 110 5.4250
B5101E300CC-A 3" 6.2" 3.8" 1.3" 1.2" 4.1" 2.9" 5.2" 350 110 8.1550
B5101E400CC-A 4" 6.2" 4.5" 1.3" 1.2" 4.8" 3.8" 6.7" 540 85 13.7450
B5101E600CC-A 6" 11.5 5.5" 1.3" 1.2" 5.5" 5.8" 8.5" 1550 60 18.2050
B5107E800CC-A 8" 18.0 6.9" 1.6" 1.2" 4.9" 7.8" 11.2" 1650 60 -
