All Hose Accessories  > Valves  > Butterfly Valves

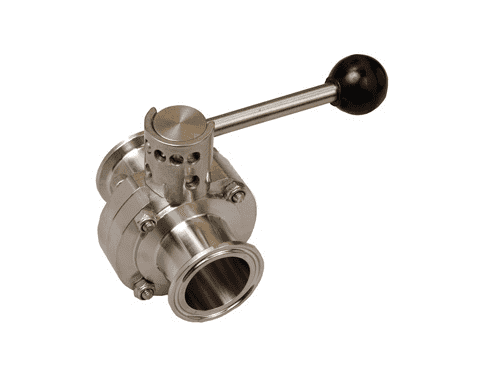

B5101E250CC-A Dixon 2-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and EPDM Seats

B5101E250CC-A Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and EPDM Seats

$0.00

Dixon Sanitary Valves
Clamp End Butterfly Valve with Pull Handle - [A] - 316L Stainless Steel with EPDM Seats
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B5101E250CC-A Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Features:
  • The pull style handle allows you to set the valve in four different positions simply by pulling and turning.
  • 100% hydraulic tested / 100% inspected.
  • All wetted surfaces are sanitary finished to < 32Ra.
  • Field serviceable (no special tools required).
  • Vacuum rating: 0.4 inches Hg at 68 deg. F.
  • Temperature range: 15 deg. F to 200 deg. F.
  • Clamp style is standard.
Part Number Size Dimensions

Break Torque
(in-lbs.)		 PSI @
68 deg. F		 Weight
(Lbs.)
A B C D E F G
B5101E050CC-A 1/2" 4.4" 2.8" 1.4" 0.9" 3.5" .37" 3.1" 75 140 0.5550
B5101E075CC-A 3/4" 4.4" 2.8" 1.4" 0.9" 3.5" .62" 3.1" 75 140 0.5550
B5101E100CC-A 1" 4.4" 2.8" 1.4" 0.9" 3.5" 0.9" 3.1" 75 140 3.6050
B5101E150CC-A 1-1/2" 4.4" 2.8" 1.4" 0.9" 3.5" 1.4" 3.1" 130 140 3.2050
B5101E200CC-A 2" 4.4" 3.1" 1.4" 0.9" 3.8" 1.9" 3.9" 165 140 4.3750
B5101E250CC-A 2-1/2" 4.4" 3.5" 1.4" 0.9" 3.8" 2.4" 4.6" 210 110 5.4250
B5101E300CC-A 3" 6.2" 3.8" 1.3" 1.2" 4.1" 2.9" 5.2" 350 110 8.1550
B5101E400CC-A 4" 6.2" 4.5" 1.3" 1.2" 4.8" 3.8" 6.7" 540 85 13.7450
B5101E600CC-A 6" 11.5 5.5" 1.3" 1.2" 5.5" 5.8" 8.5" 1550 60 18.2050
B5107E800CC-A 8" 18.0 6.9" 1.6" 1.2" 4.9" 7.8" 11.2" 1650 60 -
