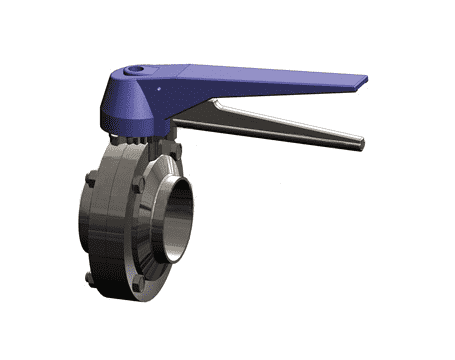

B5115S400BB-C Dixon 4" 304 Stainless Steel Sanitary Butterfly Valve with Trigger Handle - Weld End

B5115S400BB-C Dixon Valve 4" 304 Stainless Steel Sanitary Butterfly Valve with Trigger Handle - Weld End

$199.79 - $199.79
$199.79
$253.75
$253.75 - $253.75
$253.75

Dixon Sanitary Valves - Butterfly Valves with Trigger Handle - Weld End - 304 Stainless Steel
Specifications for Variant SKU: B5115S400BB-C Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Sanitary Clamp End, 4in Sanitary Clamp End, Some Ends Match
Material(s): 304 Stainless Steel
Seal Material(s): Silicone
Features:
  • 100% tested / 100% inspected.
  • All wetted surfaces are sanitary finished to < 32Ra.
  • Field serviceable (no special tools required).
  • Silicone seats.
  • Blue trigger handle
  • Operating temperature range: 15 deg. - 200 deg. F
  • Maximum operating pressure: 110 PSI
  • Repair kits available.
Dimensions:
Part Number Size Dimensions Seat Weight (Lbs.)
A B C D E F G
B5115S150BB-C 1-1/2" 5.70" 3.40" 1.60" 0.87" 2.80" 1.40" 3.40" Silicone N/A
B5115S200BB-C 2" 5.70" 3.60" 1.60" 0.87" 3.00" 1.90" 3.90" Silicone N/A
B5115S300BB-C 3" 5.70" 4.20" 1.60" 0.87" 3.30" 2.90" 5.00" Silicone N/A
B5115S400BB-C 4" 6.89" 5.51" 1.60" 0.87" 3.62" 3.83" 6.89" Silicone N/A
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
