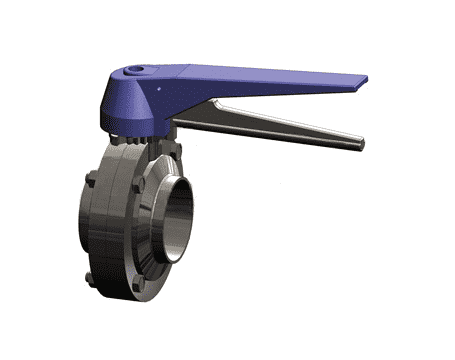

B5115S200BB-C Dixon 2" 304 Stainless Steel Sanitary Butterfly Valve with Trigger Handle - Weld End

B5115S200BB-C Dixon Valve 2" 304 Stainless Steel Sanitary Butterfly Valve with Trigger Handle - Weld End

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves - Butterfly Valves with Trigger Handle - Weld End - 304 Stainless Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B5115S200BB-C Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Sanitary Clamp End, 2in Sanitary Clamp End, Some Ends Match
Material(s): 304 Stainless Steel
Seal Material(s): Silicone
Features:
  • 100% tested / 100% inspected.
  • All wetted surfaces are sanitary finished to < 32Ra.
  • Field serviceable (no special tools required).
  • Silicone seats.
  • Blue trigger handle
  • Operating temperature range: 15 deg. - 200 deg. F
  • Maximum operating pressure: 110 PSI
  • Repair kits available.
Dimensions:
Part Number Size Dimensions Seat Weight (Lbs.)
A B C D E F G
B5115S150BB-C 1-1/2" 5.70" 3.40" 1.60" 0.87" 2.80" 1.40" 3.40" Silicone N/A
B5115S200BB-C 2" 5.70" 3.60" 1.60" 0.87" 3.00" 1.90" 3.90" Silicone N/A
B5115S300BB-C 3" 5.70" 4.20" 1.60" 0.87" 3.30" 2.90" 5.00" Silicone N/A
B5115S400BB-C 4" 6.89" 5.51" 1.60" 0.87" 3.62" 3.83" 6.89" Silicone N/A
