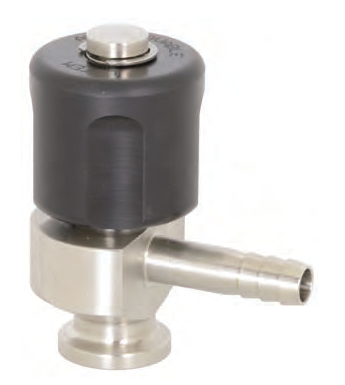

BSVACV-N075025 Dixon Valve Angle Sample Valve - 3/4" Clamp x 1/4" Barb - 316L Stainless Steel

BSVACV-N075025 Dixon Valve Angle Sample Valve - 3/4" Clamp x 1/4" Barb - 316L Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Sample Valves
Angle Sample Valve - Clamp x Barb - 316L Stainless Steel
Specifications for Variant SKU: BSVACV-N075025 Dixon
Shape (Orientation): 90 Degree
Material(s): 316L Stainless Steel
Features:
  • All 316L stainless wetted part construction
  • Standard finish to 20 Ra ID / 32 Ra OD
  • FKM O-ring
  • Fully traceable (material test reports)
  • Virgin PTFE seat for positive closure
  • Minimal internal dead-leg area
  • Temperature rating: 300°F at 200 PSI
Part Number Valve Size Dimensions
A B Barb Ø
C		 D Ferrule Ø
E
BSVACV-N050025 1/2" 0.93" 0.21" 1/4" 1.76" 0.99"
BSVACV-N050375 1/2" 0.92" 0.28" 3/8" 1.78" 1.99"
BSVACV-N050050 1/2" 0.85" 0.37" 1/2" 1.76" 0.99"
BSVACV-N075025 3/4" 0.93" 0.21" 1/4" 1.76" 0.99"
BSVACV-N075375 3/4" 0.92" 0.28" 3/8" 1.78" 0.99"
BSVACV-N100025 1" 0.96" 0.21" 1/4" 2.04" 1.98"
BSVACV-N100050 1" 0.88" 0.37" 1/2" 2.03" 1.98"
BSVACV-N150025 1-1/2" 0.96" 0.21" 1/4" 2.04" 1.98"
BSVACV-N150375 1-1/2" 0.95" 0.28" 3/8" 2.03" 1.98"
BSVACV-N150050 1-1/2" 0.88" 0.37" 1/2" 2.03" 1.98"
BSVACV-N200025 2" 0.96" 0.21" 1/4" 2.31" 2.52"
BSVACV-N200375 2" 0.95" 0.28" 3/8" 2.31" 2.52"
BSVACV-N200050 2" 0.88" 0.37" 1/2" 2.29" 2.52"
Replacement Parts:
BSVA-NRKS050 1/2" Repair Kit For BSVACV Angle Sample Valves Repair Kit contains:
#3 (1) PTFE seat
#4 (1) 18-8 stainless steel E-clip
#5 (1) FKM O-ring
#6 (1) 316 stainless steel stop pin
