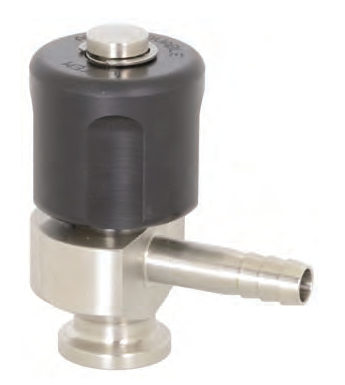

BSVACV-N150375 Dixon Valve Angle Sample Valve - 1-1/2" Clamp x 1/2" Barb - 316L Stainless Steel

BSVACV-N150375 Dixon Valve Angle Sample Valve - 1-1/2" Clamp x 1/2" Barb - 316L Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Sample Valves
Angle Sample Valve - Clamp x Barb - 316L Stainless Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BSVACV-N150375 Dixon
Shape (Orientation): 90 Degree
Material(s): 316L Stainless Steel
Features:
  • All 316L stainless wetted part construction
  • Standard finish to 20 Ra ID / 32 Ra OD
  • FKM O-ring
  • Fully traceable (material test reports)
  • Virgin PTFE seat for positive closure
  • Minimal internal dead-leg area
  • Temperature rating: 300°F at 200 PSI
Part Number Valve Size Dimensions
A B Barb Ø
C		 D Ferrule Ø
E
BSVACV-N050025 1/2" 0.93" 0.21" 1/4" 1.76" 0.99"
BSVACV-N050375 1/2" 0.92" 0.28" 3/8" 1.78" 1.99"
BSVACV-N050050 1/2" 0.85" 0.37" 1/2" 1.76" 0.99"
BSVACV-N075025 3/4" 0.93" 0.21" 1/4" 1.76" 0.99"
BSVACV-N075375 3/4" 0.92" 0.28" 3/8" 1.78" 0.99"
BSVACV-N100025 1" 0.96" 0.21" 1/4" 2.04" 1.98"
BSVACV-N100050 1" 0.88" 0.37" 1/2" 2.03" 1.98"
BSVACV-N150025 1-1/2" 0.96" 0.21" 1/4" 2.04" 1.98"
BSVACV-N150375 1-1/2" 0.95" 0.28" 3/8" 2.03" 1.98"
BSVACV-N150050 1-1/2" 0.88" 0.37" 1/2" 2.03" 1.98"
BSVACV-N200025 2" 0.96" 0.21" 1/4" 2.31" 2.52"
BSVACV-N200375 2" 0.95" 0.28" 3/8" 2.31" 2.52"
BSVACV-N200050 2" 0.88" 0.37" 1/2" 2.29" 2.52"
Replacement Parts:
BSVA-NRKS050 1/2" Repair Kit For BSVACV Angle Sample Valves Repair Kit contains:
#3 (1) PTFE seat
#4 (1) 18-8 stainless steel E-clip
#5 (1) FKM O-ring
#6 (1) 316 stainless steel stop pin
