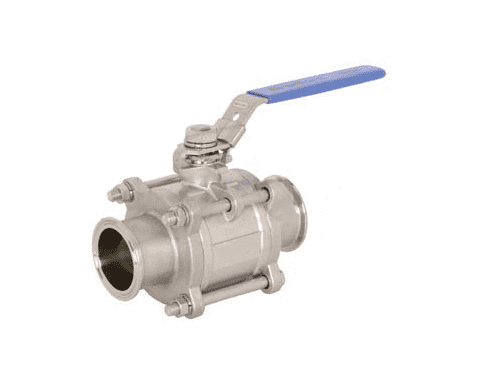

BV2GG-150CC-A Dixon 1-1/2" 316 Stainless Steel Sanitary Non-Encapsulated 2-way 3 Piece Stainless Steel Ball Valve

BV2GG-150CC-A Dixon Valve 1-1/2" 316 Stainless Steel Sanitary Non-Encapsulated 2-way 3 Piece Stainless Steel Ball Valve

Save $23.18 Save $23.18
$252.21
$252.21 - $252.21
$252.21
$229.03
$229.03 - $229.03
$229.03

Dixon Sanitary Valves - Non-Encapsulated 2-way 3 Piece Stainless Steel Ball Valves - 316 Stainless Steel
Specifications for Variant SKU: BV2GG-150CC-A Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Sanitary Clamp End, 1-1/2in Sanitary Clamp End, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Glass Reinforced RTFE
Features:
  • Blow-out proof stem.
  • Live-loaded stem packing.
  • 15% glass reinforced PTFE seats.
  • ID polish is Ra 32.
  • CF8M stainless body, ends and ball.
  • Lockable handle.
  • Rated to:
    • 1/2" - 2" 1,000 PSI WOG
    • 2-1/2" - 4" 800 PSI WOG
  • Repair kits available.
Dimensions:
Part Number Size Dimensions Break Torque (in-lbs.) Weight (Lbs.)
A B C
BV2GG-050CC-A 1/2" 4.1" 2.3" 4.6" 55 1.2700
BV2GG-075CC-A 3/4" 4.1" 2.5" 4.7" 71 1.5100
BV2GG-100CC-A 1" 5.0" 2.8" 4.9" 101 3.0500
BV2GG-150CC-A 1-1/2" 6.1" 3.5" 5.6" 221 4.9850
BV2GG-200CC-A 2" 7.6" 3.9" 6.4" 345 8.8500
BV2GG-250CC-A 2-1/2" 7.6" 4.4" 7.8" 883 14.6500
BV2GG-300CC-A 3" 10.9" 4.9" 9.0" 830 22.6500
BV2GG-400CC-A 4" 13.2" 6.6" 9.6" 1323 40.9500

Dixon Sanitary's commitment to excellence and continuous research and development for improving product quality may warrant periodic changes in design and specification. Dixon reserves the right to modify product design without prior notification and without incurring any liability to provide these modifications to products previously purchased.
