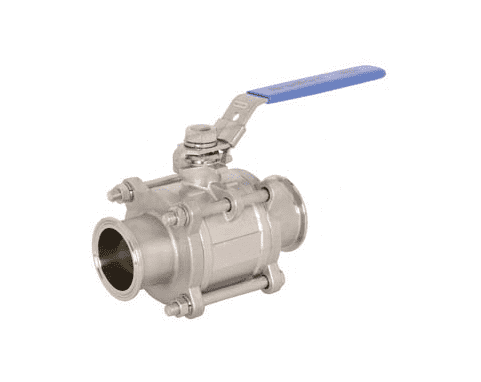

BV2GG-300CC-A Dixon 3" 316 Stainless Steel Sanitary Non-Encapsulated 2-way 3 Piece Stainless Steel Ball Valve

BV2GG-300CC-A Dixon Valve 3" 316 Stainless Steel Sanitary Non-Encapsulated 2-way 3 Piece Stainless Steel Ball Valve

$704.62

Dixon Sanitary Valves - Non-Encapsulated 2-way 3 Piece Stainless Steel Ball Valves - 316 Stainless Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BV2GG-300CC-A Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Sanitary Clamp End, 3in Sanitary Clamp End, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Glass Reinforced RTFE
Features:
  • Blow-out proof stem.
  • Live-loaded stem packing.
  • 15% glass reinforced PTFE seats.
  • ID polish is Ra 32.
  • CF8M stainless body, ends and ball.
  • Lockable handle.
  • Rated to:
    • 1/2" - 2" 1,000 PSI WOG
    • 2-1/2" - 4" 800 PSI WOG
  • Repair kits available.
Dimensions:
Part Number Size Dimensions Break Torque (in-lbs.) Weight (Lbs.)
A B C
BV2GG-050CC-A 1/2" 4.1" 2.3" 4.6" 55 1.2700
BV2GG-075CC-A 3/4" 4.1" 2.5" 4.7" 71 1.5100
BV2GG-100CC-A 1" 5.0" 2.8" 4.9" 101 3.0500
BV2GG-150CC-A 1-1/2" 6.1" 3.5" 5.6" 221 4.9850
BV2GG-200CC-A 2" 7.6" 3.9" 6.4" 345 8.8500
BV2GG-250CC-A 2-1/2" 7.6" 4.4" 7.8" 883 14.6500
BV2GG-300CC-A 3" 10.9" 4.9" 9.0" 830 22.6500
BV2GG-400CC-A 4" 13.2" 6.6" 9.6" 1323 40.9500

Dixon Sanitary's commitment to excellence and continuous research and development for improving product quality may warrant periodic changes in design and specification. Dixon reserves the right to modify product design without prior notification and without incurring any liability to provide these modifications to products previously purchased.
