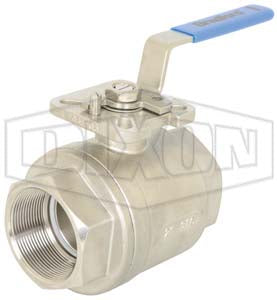

BV2HG-25011-A Dixon Valve 2-1/2" Two-Piece Industrial Stainless Steel Ball Valve - Seat: RTFE - Seal: PTFE

Name: BV2HG-25011-A Dixon Valve 2-1/2" Two-Piece Industrial Stainless Steel Ball Valve - Seat: RTFE - Seal: PTFE
Brand: Dixon
SKU: BV2HG-25011-A Dixon
Price: 1414.09 USD
Availability: InStock

Save $176.76

$1,590.85

$1,590.85 - $1,590.85

$1,590.85

$1,414.09

$1,414.09 - $1,414.09

$1,414.09

Dixon Sanitary Valves
Two-Piece Industrial Stainless Steel Ball Valve - CF8M Stainless Steel

Seat: RTFE

Seal: PTFE

Quantity

Specifications for Variant SKU: BV2HG-25011-A Dixon
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Female NPT, 2-1/2in Female NPT, Some Ends Match
Material(s):	Stainless Steel
Seal Material(s):	PTFE

Features:
Full port FNPT end connection. Blow-out proof stem. Maximum Temperature: 350°F (177°C).
Construction:
CF8M stainless body, ends and ball. ISO 5211 mounting pad.
Specifications:
ISO 9001, CS, CE and CSA-C US RoHS compliant

Part Number	Size	Pressure Rating	Break Torque
BV2HG-02511-A	1/4"	1000 PSI WOG	65 in. lbs.
BV2HG-03811-A	3/8"	1000 PSI WOG	86 in. lbs.
BV2HG-05011-A	1/2"	1000 PSI WOG	86 in. lbs.
BV2HG-07511-A	3/4"	1000 PSI WOG	97 in. lbs.
BV2HG-10011-A	1"	1000 PSI WOG	160 in. lbs.
BV2HG-12511-A	1-1/4"	1000 PSI WOG	239 in. lbs.
BV2HG-15011-A	1-1/2"	1000 PSI WOG	398 in. lbs.
BV2HG-20011-A	2"	1000 PSI WOG	600 in. lbs.
BV2HG-25011-A	2-1/2"	800 PSI WOG	980 in. lbs.
BV2HG-30011-A	3"	800 PSI WOG	1000 in. lbs.
