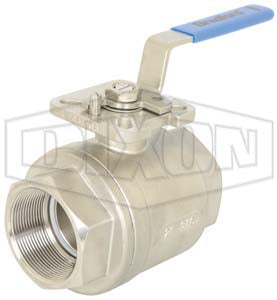

BV2HG-15011-A Dixon Valve 1-1/2" Two-Piece Industrial Stainless Steel Ball Valve - Seat: RTFE - Seal: PTFE

BV2HG-15011-A Dixon Valve 1-1/2" Two-Piece Industrial Stainless Steel Ball Valve - Seat: RTFE - Seal: PTFE

$0.00 - $0.00
$0.00
$227.69
$227.69 - $227.69
$227.69

Dixon Sanitary Valves
Two-Piece Industrial Stainless Steel Ball Valve - CF8M Stainless Steel

Seat: RTFE

Seal: PTFE
Specifications for Variant SKU: BV2HG-15011-A Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): PTFE
Features:
  • Full port
  • FNPT end connection.
  • Blow-out proof stem.
  • Maximum Temperature: 350°F (177°C).
Construction:
  • CF8M stainless body, ends and ball.
  • ISO 5211 mounting pad.
Specifications:
  • ISO 9001, CS, CE and CSA-C US
  • RoHS compliant
Part Number Size Pressure Rating Break Torque
BV2HG-02511-A 1/4" 1000 PSI WOG 65 in. lbs.
BV2HG-03811-A 3/8" 1000 PSI WOG 86 in. lbs.
BV2HG-05011-A 1/2" 1000 PSI WOG 86 in. lbs.
BV2HG-07511-A 3/4" 1000 PSI WOG 97 in. lbs.
BV2HG-10011-A 1" 1000 PSI WOG 160 in. lbs.
BV2HG-12511-A 1-1/4" 1000 PSI WOG 239 in. lbs.
BV2HG-15011-A 1-1/2" 1000 PSI WOG 398 in. lbs.
BV2HG-20011-A 2" 1000 PSI WOG 600 in. lbs.
BV2HG-25011-A 2-1/2" 800 PSI WOG 980 in. lbs.
BV2HG-30011-A 3" 800 PSI WOG 1000 in. lbs.
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
