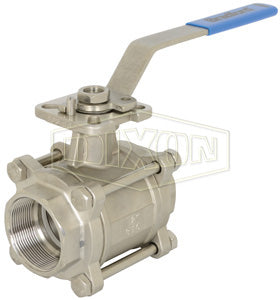

BV2IGN07511-A by Dixon Valve | 3-Piece Industrial Ball Valve | Full Port | 3/4" Female NPT x 3/4" Female NPT | Stainless Steel

Name: BV2IGN07511-A by Dixon Valve | 3-Piece Industrial Ball Valve | Full Port | 3/4" Female NPT x 3/4" Female NPT | Stainless Steel
Brand: Dixon
SKU: BV2IGN07511-A Dixon
Price: 89.36 USD
Availability: InStock

$0.00 - $0.00

$0.00

$89.36

$89.36 - $89.36

$89.36

Dixon Valve & Coupling
3-Piece Industrial Ball Valve | CF8M Stainless Steel

Quantity

Specifications for Variant SKU: BV2IGN07511-A Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s):	Stainless Steel
Seal Material(s):	Glass Reinforced RTFE

Features:
Blowout-proof stem. Live-loaded stem packing. Swing out design for easy maintenance. ISO 5211 mounting pad.
Materials:
Body: CF8M Stainless Steel RTFE seat and seals.
Specifications:
Maximum temperature: 400°F (200°C) Maximum pressure: 1/4" - 1/2" 1,000 PSI WOG at 65°F 2-1/2" - 3" 800 PSI WOG at 65°F 4" 600 PSI WOG at 65°F


Part Number	Female NPT x Female NPT	Port	PSI at 65°F	A	B	C	D
BV2IGN05011-A	1/2"	Full	1000 PSI	2.8"	1.7"	4.9"	3.3"
BV2IGN07511-A	3/4"	Full	1000 PSI	3.1"	1.9"	4.9"	3.5"
BV2IGN10011-A	1"	Full	1000 PSI	3.3"	2.2"	5.4"	3.7"
BV2IGN12511-A	1-1/4"	Full	1000 PSI	4.1"	2.4"	5.4"	3.9"
BV2IGN15011-A	1-1/2"	Full	1000 PSI	4.5"	2.8"	9.3"	4.4"
BV2IGN20011-A	2"	Full	1000 PSI	5.1"	3.4"	9.3"	5.0"
BV2IGN25011-A	2-1/2"	Full	800 PSI	6.6"	4.3"	18.0"	5.6"
BV2IGN30011-A	3"	Full	800 PSI	7.3"	4.7"	18.0"	6.1"
BV2IGN40011-A	4"	Full	600 PSI	8.9"	4.5"	18.3"	6.1"
