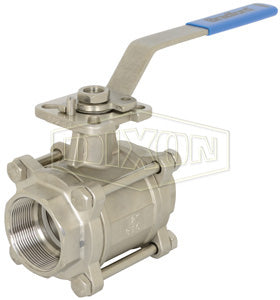

BV2IGN40011-A by Dixon Valve | 3-Piece Industrial Ball Valve | Full Port | 4" Female NPT x 4" Female NPT | Stainless Steel

BV2IGN40011-A by Dixon Valve | 3-Piece Industrial Ball Valve | Full Port | 4" Female NPT x 4" Female NPT | Stainless Steel

Save $1,085.02 Save $1,085.02
$2,712.55
$2,712.55 - $2,712.55
$2,712.55
$1,627.53
$1,627.53 - $1,627.53
$1,627.53

Dixon Valve & Coupling
3-Piece Industrial Ball Valve | CF8M Stainless Steel
Specifications for Variant SKU: BV2IGN40011-A Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Female NPT, 4in Female NPT, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): Glass Reinforced RTFE
Features:
  • Blowout-proof stem.
  • Live-loaded stem packing.
  • Swing out design for easy maintenance.
  • ISO 5211 mounting pad.
Materials:
  • Body: CF8M Stainless Steel
  • RTFE seat and seals.
Specifications:
  • Maximum temperature: 400°F (200°C)
  • Maximum pressure:
    1/4" - 1/2" 1,000 PSI WOG at 65°F
    2-1/2" - 3" 800 PSI WOG at 65°F
    4" 600 PSI WOG at 65°F
Part Number Female NPT x Female NPT Port PSI at 65°F A B C D
BV2IGN05011-A 1/2" Full 1000 PSI 2.8" 1.7" 4.9" 3.3"
BV2IGN07511-A 3/4" Full 1000 PSI 3.1" 1.9" 4.9" 3.5"
BV2IGN10011-A 1" Full 1000 PSI 3.3" 2.2" 5.4" 3.7"
BV2IGN12511-A 1-1/4" Full 1000 PSI 4.1" 2.4" 5.4" 3.9"
BV2IGN15011-A 1-1/2" Full 1000 PSI 4.5" 2.8" 9.3" 4.4"
BV2IGN20011-A 2" Full 1000 PSI 5.1" 3.4" 9.3" 5.0"
BV2IGN25011-A 2-1/2" Full 800 PSI 6.6" 4.3" 18.0" 5.6"
BV2IGN30011-A 3" Full 800 PSI 7.3" 4.7" 18.0" 6.1"
BV2IGN40011-A 4" Full 600 PSI 8.9" 4.5" 18.3" 6.1"
