C6190-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 61 Flange | 90° Elbow | for 3/4" Hose ID

Name: C6190-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Code 61 Flange | 90° Elbow | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: C6190-12-12-WHP Kurt
Price: 34.91 USD
Availability: InStock

Save $23.27

$58.18

$58.18 - $58.18

$58.18

$34.91

$34.91 - $34.91

$34.91

by Kurt Hydraulics
C6190-WHP - Code 61 Flange 90 deg. Bent Tube Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6190-12-12-WHP Kurt
Series:	WHP Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in Code 61 Flange

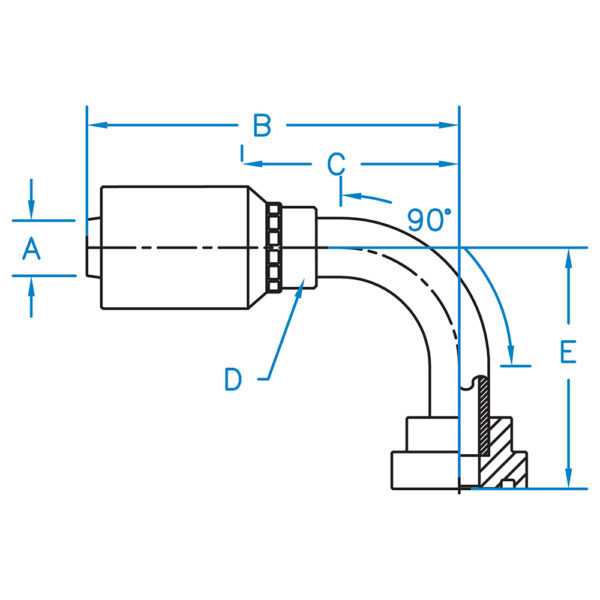

Part Number	A	B	C	D	E	Hose ID (In)	Thread
C61-12-12-WHP	0.750	5.390	2.960	1-3/16R	2.376	3/4"	N/A
C61-16-16-WHP	1.000	5.719	3.189	1-7/16R	2.800R	1.000"	N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.

Shop Parts by Kurt Hydraulics
