C6222-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 22° Elbow | for 1-1/4" Hose ID

Name: C6222-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Code 62 Flange | 22° Elbow | for 1-1/4" Hose ID
Brand: Kurt Hydraulics
SKU: C6222-20-20-JJ Kurt
Price: 73.81 USD
Availability: InStock

Save $49.21

$123.02

$123.02 - $123.02

$123.02

$73.81

$73.81 - $73.81

$73.81

by Kurt Hydraulics
C6222-JJ - Code 62 Flange 22 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: C6222-20-20-JJ Kurt
Series:	JJ Series
Shape (Orientation):	22 Degree
Ends Configuration:	1-1/4in Hose Barb, 1-1/4in Code 62 Flange

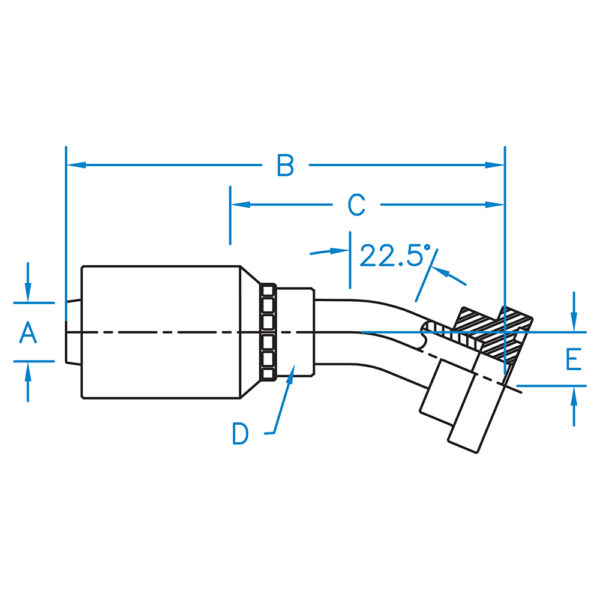

Part Number	A	B	C	D	E	Hose ID (In)
C6222-20-20-JJ	1.250	6.277	3.677	1-3/4R	0.646	1-1/4"
C6222-24-32-JJ	1.500	7.580	4.590	2-1/8R	0.970	1-1/2"
C6222-32-32-JJ	2.000	9.140	5.560	2-3/4R	1.120	2.000"

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
