C6290-16-20-W by Kurt Hydraulics | Jump Size | Code 62 Flange | 90° Elbow | for 1" Hose ID

C6290-16-20-W by Kurt Hydraulics | Jump Size | Code 62 Flange | 90° Elbow | for 1" Hose ID

Save $36.69 Save $36.69
$91.73
$91.73 - $91.73
$91.73
$55.04
$55.04 - $55.04
$55.04

by Kurt Hydraulics
C6290-W - Code 62 Flange 90 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: C6290-16-20-W Kurt
Series: W Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Hose Barb, 1-1/4in Code 62 Flange
Special Properties: Jump Size

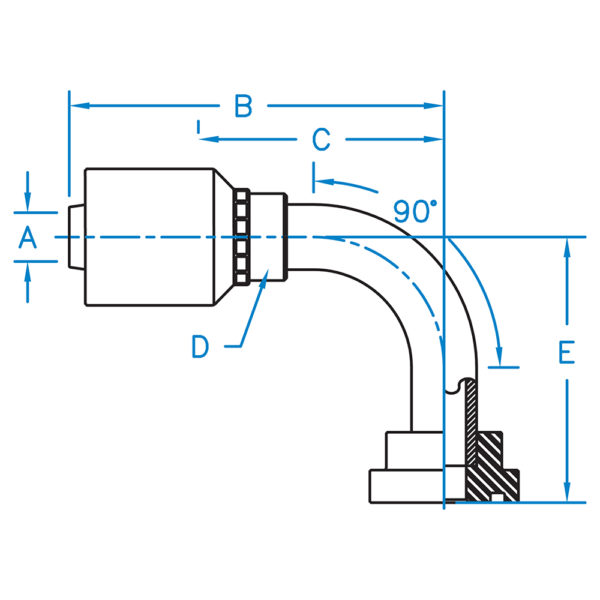

Part Number A B C D E Hose ID
(In)		 Thread
C6290-12-12-W 0.750 4.820 2.935 1.0R 2.506 3/4" N/A
C6290-12-16-W 0.750 4.820 2.938 1.0R 2.620 3/4" N/A
C6290-16-16-W 1.000 5.220 3.110 1-5/16R 2.620 1.000" N/A
C6290-16-20-W 1.000 5.220 2.690 1-5/16R 2.690 1.000" N/A
C6290-20-16-W 1.250 N/A N/A 1-5/8R N/A 1-1/4" N/A
C6290-20-20-W 1.250 6.230 3.780 1-5/8R 3.110 1-1/4" N/A
C6290-20-24-W 1.250 6.230 3.780 1-5/8R 3.330 1-1/4" N/A
C6290-24-24-W 1.500 6.740 4.140 2.0R 3.830 1-1/2" N/A
C6290-32-32-W 2.000 8.31 5.01 2-1/2R 5.56 2.000" N/A
