CAT45-16-20-W by Kurt Hydraulics | Jump Size | CAT Flange | 45° Elbow | for 1" Hose ID

CAT45-16-20-W by Kurt Hydraulics | Jump Size | CAT Flange | 45° Elbow | for 1" Hose ID

Save $8.52 Save $8.52
$76.65
$76.65 - $76.65
$76.65
$68.13
$68.13 - $68.13
$68.13

by Kurt Hydraulics
CAT45-W - Cat Flange 45 deg. Bent Tube Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: CAT45-16-20-W Kurt
Series: CAT45 Series
Shape (Orientation): 45 Degree
Ends Configuration: 1in Hose Barb, 1-1/4in CAT Flange
Special Properties: Jump Size

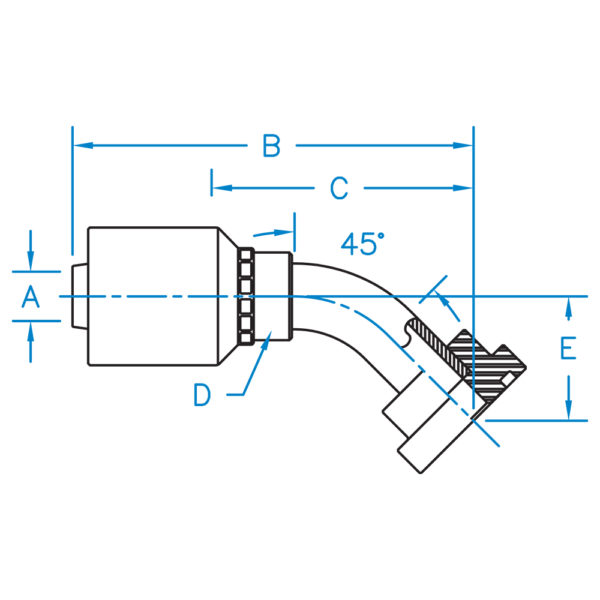

Part Number A B C D E Hose ID
(In)		 Thread
CAT45-12-12-W 0.750 4.710 2.940 1.0R 1.360 3/4" N/A
CAT45-12-16-W 0.750 4.800 3.010 1.0R 1.030 3/4" N/A
CAT45-16-16-W 1.000 4.870 3.080 1-5/16R 1.430 1.000" N/A
CAT45-16-20-W 1.000 5.140 3.020 1-5/16R 1.150 1.000" N/A
CAT45-20-20-W 1.250 6.290 3.195 1-5/8R 1.460 1-1/4" N/A
CAT45-20-24-W 1.250 6.430 3.980 1-5/8R 1.610 1-1/4" N/A
CAT45-24-24-W 1.500 7.390 4.790 2.0R 1.750 1-1/2" N/A
CAT45-32-32-W 2.000 N/A N/A N/A N/A 2.000" N/A

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
