CG-SL100X100 Kuriyama Tigerflex CG-SL Series Pre-Slit Cover Guard PVC Ducting and Cover Protection Hose - 1" - 100ft

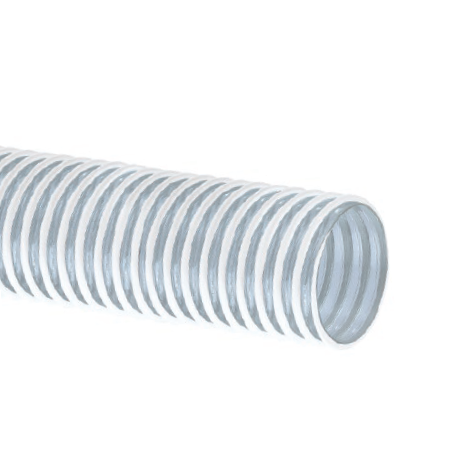

CG / CG-SL Kuriyama Tigerflex Cover Guard PVC Ducting and Cover Protection Hose

CG-SL100X100 Tigerflex by Kuriyama | CG-SL Series | Pre-Slit Cover Guard Ducting and Cover Protection Hose | 1" ID | PVC | 100ft Length

Save $62.16

$217.56

$217.56 - $217.56

$217.56

$155.40

$155.40 - $155.40

$155.40

Kuriyama Tigerflex CG-SL™ Series Cover Guard PVC Ducting and Cover Protection Hose

Package Quantity: 100 FT

Specifications for Variant SKU: CG-SL100X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	CG-SL Series
Hose Color(s):	White/Off-White & Clear/Semi-Clear
Internal Diameter:	1in
Outer Diameter:	1.28in
Applicable Specs & Approvals:	Applicable MSHA Standards, RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Cable and hose bundle protection (MSHA), Dust collection, Ducting,ventilation and fume removal, Mine supply line cover protection	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	rigid PVC helix	Cover:	N/A
Temperature Range:	-4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS, MSHA
MSHA(09) Approved - Meets U.S. Dept. of Labor Administration requirements for flame-resistance for use in mines for protection of hose bundles. Transparent Construction - "See-the-flow." Allows for visual confiurmation of material flow. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. CG-SL Series - pre-slit for easy insertion of hose bundles.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
CG-SL100X100	1"	25.4mm	1.28"	31.9mm	N/A	N/A	N/A	N/A	.5"	100ft	0.14 lbs
CG-SL125X100	1-1/4"	31.8mm	1.51"	38.4mm	NA	NA	NA	NA	.75"	100ft	0.18 lbs
CG-SL150X100	1-1/2"	38.1mm	1.76"	45.1mm	NA	NA	NA	NA	1"	100ft	0.21 lbs
CG-SL200X100	2"	50.8mm	2.30"	58.4mm	12 PSI	6 PSI	10 in. Hg	5 in. Hg	2"	100ft	0.28 lbs
CG-SL250X100	2-1/2"	63.5mm	2.81"	71.3mm	10 PSI	5 PSI	8 in. Hg	4 in. Hg	2"	100ft	0.39 lbs
CG-SL300X100	3"	76.2mm	3.35"	85.0mm	8 PSI	4 PSI	7 in. Hg	3 in. Hg	3"	100ft	0.45 lbs
CG-SL350X100	3-1/2"	88.9mm	3.83"	97.4mm	8 PSI	4 PSI	7 in. Hg	3 in. Hg	3"	100ft	0.51 lbs
CG-SL400X100	4"	102.4mm	4.39"	111.4mm	6 PSI	3 PSI	6 in. Hg	3 in. Hg	3"	100ft	0.64 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
