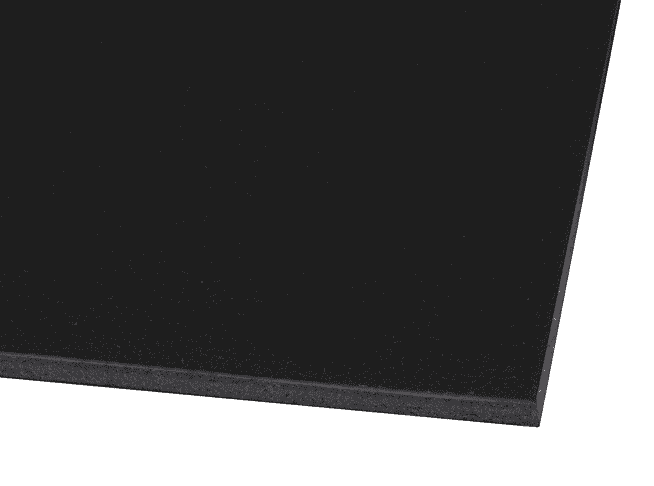

CI-1P02x48x67 by Kuriyama | Commercial Grade Cloth-Inserted SBR Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/16" x 48" | 67ft Roll

CI-1P02x48x67 by Kuriyama | Commercial Grade Cloth-Inserted SBR Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/16" x 48" | 67ft Roll

Save $240.24 Save $240.24
$840.83
$840.83 - $840.83
$840.83
$600.59
$600.59 - $600.59
$600.59

Kuriyama Industrial Sheet Rubber - Black Cloth-Inserted SBR Sheet Rubber

Package Quantity: 67 FT

Specifications for Variant SKU: CI-1P02X48X67 Kuriyama | 67 |

SPECIFICATIONS

Styles: 60 Duro hardness (Shore Durometer A) Polymer: Styrene-Butadiene Rubber reinforced with 3.4 oz./sq. yd. nylon fabric
Common Name: Cloth-reinforced Black Rubber Sheet ISO/ASTM Designation: SBR
Features & Properties:
  • Excellent physical properties.
  • (Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition)
  • Acid Resistance
  • Alkali Resistance
  • Compression Set Resilience
  • Excellent resistance to petroleum-based fluids
  • Gas Permeability Resistance
  • Gas Resistance
  • Good physical properties
  • Heat Aging Abrasion Resistance
  • Oil Resistance
  • Tear Flame Resistance
  • Weathering Ozone Resistance
Part Number Gauge x Width in. ASTM Specification (SI units) Temp. Range Fabric Plies Durometer Tensile Strength (PSI) Finish Avg. Length (Linear Ft. /Roll) Weight (Lbs/Roll)
CI-1P02x48x67 1/16" x 36" D 2000 M2AA 603 -20 deg. F to +170 deg. F 1 Ply 55 - 65 600 PSI Plate 67ft 132 lbs
CI-1P04x48x36 1/8" x 48" D 2000 M2AA 603 -20 deg. F to +170 deg. F 1 Ply 55 - 65 600 PSI Plate 67ft 140 lbs
CI-2P04x48x36 1/8" x 48" D 2000 M2AA 603 -20 deg. F to +170 deg. F 2 Ply 55 - 65 600 PSI Plate 36ft 140 lbs
CI-2P04x48x50 1/8" x 48" D 2000 M2AA 603 -20 deg. F to +170 deg. F 2 Ply 55 - 65 600 PSI Plate 50ft 194 lbs
CI-2P06x48x18 3/16" x 48" D 2000 M2AA 603 -20 deg. F to +170 deg. F 2 Ply 55 - 65 600 PSI Plate 18ft 107 lbs
CI-2P08x48x18 1/4" x 48" D 2000 M2AA 603 -20 deg. F to +170 deg. F 2 Ply 55 - 65 600 PSI Plate 18ft 140 lbs
CI-2P08x48x25 1/4" x 48" D 2000 M2AA 603 -20 deg. F to +170 deg. F 2 Ply 55 - 65 600 PSI Plate 25ft 194 lbs
CI-2P08x48x50 1/4" x 48" D 2000 M2AA 603 -20 deg. F to +170 deg. F 2 Ply 55 - 65 600 PSI Plate 50ft 388 lbs
CI-3P06x48x18 3/16" x 48" D 2000 M2AA 603 -20 deg. F to +170 deg. F 3 Ply 55 - 65 600 PSI Plate 18ft 107 lbs
CI-4P08x48x18 1/4" x 48" D 2000 M2AA 603 -20 deg. F to +170 deg. F 4 Ply 55 - 65 600 PSI Plate 18ft 140 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
