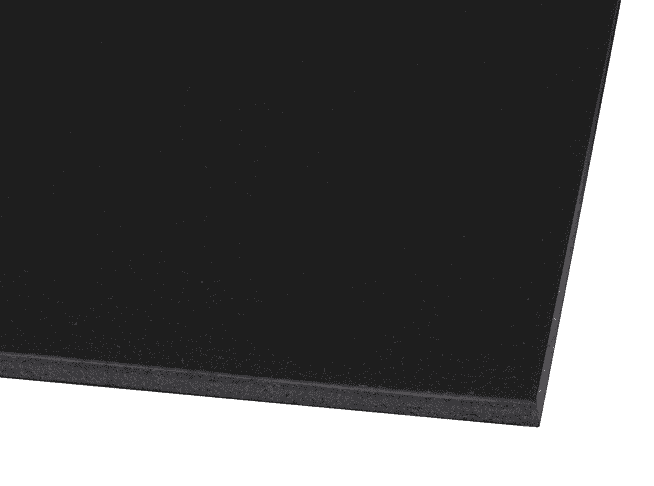

CI-2P08x48x25 by Kuriyama | Commercial Grade Cloth-Inserted SBR Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/4" x 48" | 25ft Roll

Save $23.43

$837.03

$837.03 - $837.03

$837.03

$813.60

$813.60 - $813.60

$813.60

Kuriyama Industrial Sheet Rubber - Black Cloth-Inserted SBR Sheet Rubber

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: CI-2P08X48X25 Kuriyama \| 25 \|

SPECIFICATIONS

Features & Properties:
Styles:	60 Duro hardness (Shore Durometer A)	Polymer:	Styrene-Butadiene Rubber reinforced with 3.4 oz./sq. yd. nylon fabric
Common Name:	Cloth-reinforced Black Rubber Sheet	ISO/ASTM Designation:	SBR
Excellent physical properties. (Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition) Acid Resistance Alkali Resistance Compression Set Resilience Excellent resistance to petroleum-based fluids Gas Permeability Resistance Gas Resistance Good physical properties Heat Aging Abrasion Resistance Oil Resistance Tear Flame Resistance Weathering Ozone Resistance

Part Number	Gauge x Width in.	ASTM Specification (SI units)	Temp. Range	Fabric Plies	Durometer	Tensile Strength (PSI)	Finish	Avg. Length (Linear Ft. /Roll)	Weight (Lbs/Roll)
CI-1P02x48x67	1/16" x 36"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	1 Ply	55 - 65	600 PSI	Plate	67ft	132 lbs
CI-1P04x48x36	1/8" x 48"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	1 Ply	55 - 65	600 PSI	Plate	67ft	140 lbs
CI-2P04x48x36	1/8" x 48"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	2 Ply	55 - 65	600 PSI	Plate	36ft	140 lbs
CI-2P04x48x50	1/8" x 48"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	2 Ply	55 - 65	600 PSI	Plate	50ft	194 lbs
CI-2P06x48x18	3/16" x 48"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	2 Ply	55 - 65	600 PSI	Plate	18ft	107 lbs
CI-2P08x48x18	1/4" x 48"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	2 Ply	55 - 65	600 PSI	Plate	18ft	140 lbs
CI-2P08x48x25	1/4" x 48"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	2 Ply	55 - 65	600 PSI	Plate	25ft	194 lbs
CI-2P08x48x50	1/4" x 48"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	2 Ply	55 - 65	600 PSI	Plate	50ft	388 lbs
CI-3P06x48x18	3/16" x 48"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	3 Ply	55 - 65	600 PSI	Plate	18ft	107 lbs
CI-4P08x48x18	1/4" x 48"	D 2000 M2AA 603	-20 deg. F to +170 deg. F	4 Ply	55 - 65	600 PSI	Plate	18ft	140 lbs
