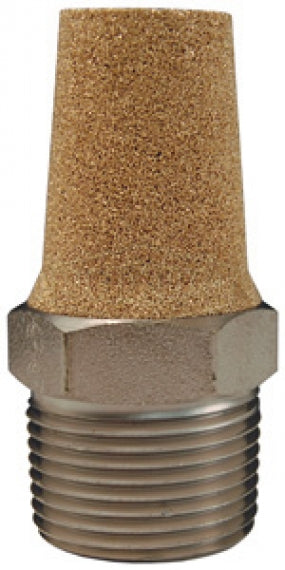

CMF48 by Dixon Valve | Pneumatic Conical Muffler | 1/2" Male NPT | 1-7/8" Overall Length | Nickel-Plated Steel

Save $0.30 Save $0.30
Original price $5.30
Original price $5.30 - Original price $5.30
Original price $5.30
Current price $5.00
$5.00 - $5.00
Current price $5.00

Conical Mufflers Conical mufflers are easy to install, threading the exhaust ports of air tool, valves, cylinders and other pneumatic equipment. They offer an economical method of reducing the noise levels below 90 dBA, conforming with OSHA standards. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CMF48 Dixon
Features:
  • Reduces noise levels below 90 dBA to conform with OSHA standards.
  • 40 micron bronze filter element.
  • Element is bonded directly to the fitting and is not replaceable.
Specifications:
  • Maximum operating pressure: 300 PSI.
  • Temperature range: 35 °F to 300 °F (2 °C to 149 °C).
Nickel-Plated Steel
Part Number
NPT Thread Overall Length
CMF18 1/8" 1-1/8"
CMF28 1/4" 1-3/8"
CMF38 3/8" 1-1/2"
CMF48 1/2" 1-7/8"
CMF68 3/4" 2-1/4"
CMF88 1" 2-7/8"
