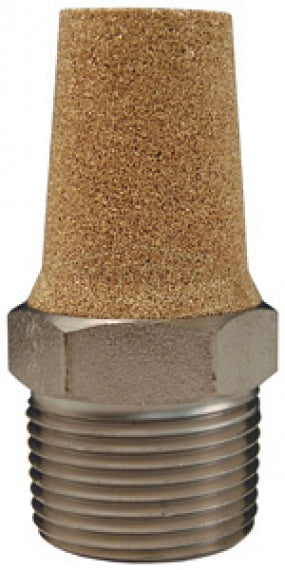

CMF68 by Dixon Valve | Pneumatic Conical Muffler | 3/4" Male NPT | 2-1/4" Overall Length | Nickel-Plated Steel

CMF68 by Dixon Valve | Pneumatic Conical Muffler | 3/4" Male NPT | 2-1/4" Overall Length | Nickel-Plated Steel

Save $1.19 Save $1.19
$10.67
$10.67 - $10.67
$10.67
$9.48
$9.48 - $9.48
$9.48

Conical Mufflers Conical mufflers are easy to install, threading the exhaust ports of air tool, valves, cylinders and other pneumatic equipment. They offer an economical method of reducing the noise levels below 90 dBA, conforming with OSHA standards. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Specifications for Variant SKU: CMF68 Dixon
Features:
  • Reduces noise levels below 90 dBA to conform with OSHA standards.
  • 40 micron bronze filter element.
  • Element is bonded directly to the fitting and is not replaceable.
Specifications:
  • Maximum operating pressure: 300 PSI.
  • Temperature range: 35 °F to 300 °F (2 °C to 149 °C).
Nickel-Plated Steel
Part Number		 NPT Thread Overall Length
CMF18 1/8" 1-1/8"
CMF28 1/4" 1-3/8"
CMF38 3/8" 1-1/2"
CMF48 1/2" 1-7/8"
CMF68 3/4" 2-1/4"
CMF88 1" 2-7/8"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
