CS45-6X14 Couplamatic VARI-CRIMP Coupling - Din Heavy 24° Seat - Female Swivel 90° Bend - 3/8" Hose ID - M22x1.5 Thread (Old Part Number: 6H64V)

CS45-6X14 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x M22x1.5 Thread Din Heavy 24° Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 6H64V

Save $1.94 Save $1.94
$17.48
$17.48 - $17.48
$17.48
$15.54
$15.54 - $15.54
$15.54

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Heavy 24° Seat - Female Swivel 90° Bend
Specifications for Variant SKU: CS45-6X14 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: S14 Female DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Includes O-Ring.

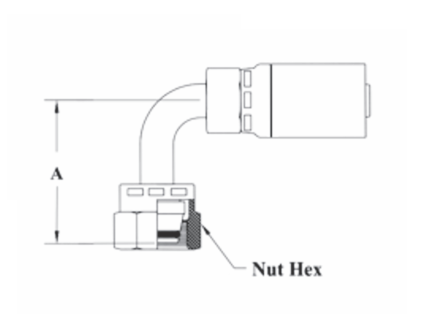

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS45-4X10 1/4" 10mm M18x1.5 1.50" 7/8" 4H60V - - -
CS45-6X12 3/8" 12mm M20x1.5 1.95" 1" 6H62V - - 06U-62E
CS45-6X14 3/8" 14mm M22x1.5 2.07" 1-1/16" 6H64V - - 06U-64E
CS45-8X16 1/2" 16mm M24x1.5 2.05" 1-1/8" 8H66V HY08-16RO24A90T 1C8HY-16-8 08U-66E
CS45-10X20 5/8" 20mm M30x2.0 2.38" 1-1/2" 10H70V - - 10U-70E

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
