CS45-10X20 Couplamatic VARI-CRIMP Coupling - Din Heavy 24° Seat - Female Swivel 90° Bend - 5/8" Hose ID - M30x2.0 Thread (Old Part Number: 10H70V)

CS45-10X20 by Couplamatic | VARI-CRIMP Coupling | 5/8" Hose ID x M30x2.0 Thread Din Heavy 24° Seat Female Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 10H70V

Save $2.36 Save $2.36
$23.61
$23.61 - $23.61
$23.61
$21.25
$21.25 - $21.25
$21.25

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Heavy 24° Seat - Female Swivel 90° Bend
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CS45-10X20 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: S20 Female DIN, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Includes O-Ring.

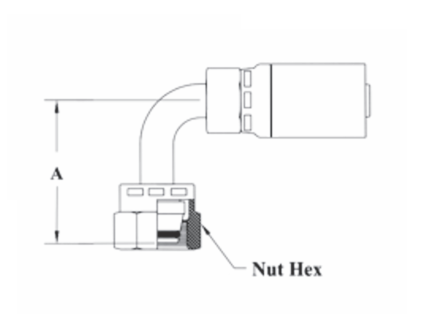

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS45-4X10 1/4" 10mm M18x1.5 1.50" 7/8" 4H60V - - -
CS45-6X12 3/8" 12mm M20x1.5 1.95" 1" 6H62V - - 06U-62E
CS45-6X14 3/8" 14mm M22x1.5 2.07" 1-1/16" 6H64V - - 06U-64E
CS45-8X16 1/2" 16mm M24x1.5 2.05" 1-1/8" 8H66V HY08-16RO24A90T 1C8HY-16-8 08U-66E
CS45-10X20 5/8" 20mm M30x2.0 2.38" 1-1/2" 10H70V - - 10U-70E

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
