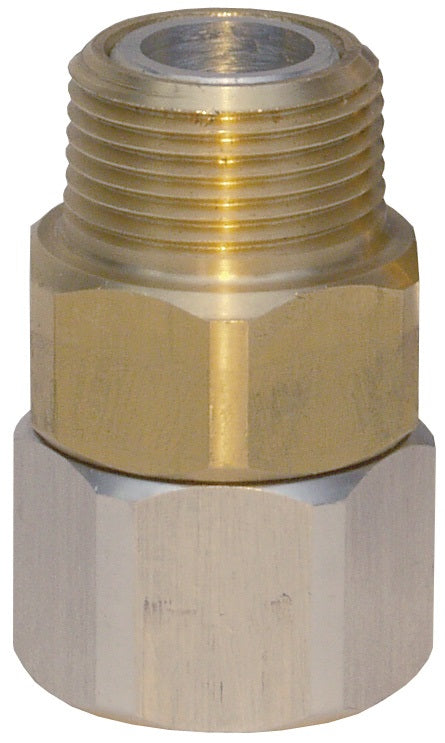

DAWS1514 by Dixon Valve | Single Plane Hose Swivel | for Diesel & Gasoline Nozzles | 1-1/2" Male NPT x 1-1/4" Female NPT Size | F-7036 Viton™ Seal | Aluminum

DAWS1514 by Dixon Valve | Single Plane Hose Swivel | for Diesel & Gasoline Nozzles | 1-1/2" Male NPT x 1-1/4" Female NPT Size | F-7036 Viton™ Seal | Aluminum

Save $26.10 Save $26.10
$234.87
$234.87 - $234.87
$234.87
$208.77
$208.77 - $208.77
$208.77

Dixon Valve
Tank Truck | Single Plane Hose Swivel for Diesel & Gasoline Nozzles

Manufactured to connect to NPT threaded hose and nozzle connections.
Specifications for Variant SKU: DAWS1514 Dixon
Brand: Bayco
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/2in Male NPT
Material(s): Aluminum
Seal Material(s): Viton/FKM
Construction:
  • Body: Aluminum.
  • Brass hex nut prevents galling in the nozzle.
  • Seals: F-7036 Viton®.
  • Retainer: nylon cord.
Specifications:
  • Maximum Operating Pressure: 150 PSI
Safety Note:
  • All fuel contains additives, which can vary by fuel brand and season. Please contact Dixon with a list of all additives and we will advise of any known compatibility issues.
Aluminum
Part		 Male NPT x Female NPT Size
DAWS34 3/4" x 3/4"
DAWS10 1" x 1"
DAWS1414 1-1/4" x 1-1/4"
DAWS1514 1-1/2" x 1-1/4"
DAWS15 1-1/2" x 1-1/2"
DAWS22 2" x 2"
