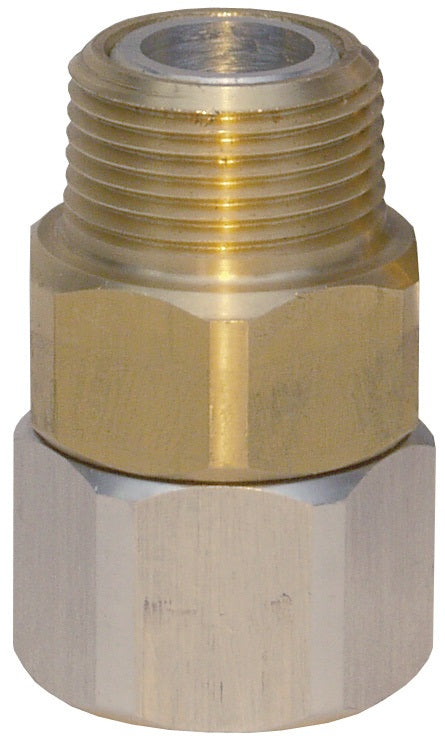

DAWS10 by Dixon Valve | Single Plane Hose Swivel | for Diesel & Gasoline Nozzles | 1" Male NPT x 1" Female NPT Size | F-7036 Viton™ Seal | Aluminum

Save $47.13

$117.82

$117.82 - $117.82

$117.82

$70.69

$70.69 - $70.69

$70.69

Dixon Valve
Tank Truck | Single Plane Hose Swivel for Diesel & Gasoline Nozzles

Manufactured to connect to NPT threaded hose and nozzle connections.

Specifications for Variant SKU: DAWS10 Dixon
Brand:	Bayco
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Male NPT
Material(s):	Aluminum
Seal Material(s):	Viton/FKM

Construction:
Body: Aluminum. Brass hex nut prevents galling in the nozzle. Seals: F-7036 Viton®. Retainer: nylon cord.
Specifications:
Maximum Operating Pressure: 150 PSI
Safety Note:
All fuel contains additives, which can vary by fuel brand and season. Please contact Dixon with a list of all additives and we will advise of any known compatibility issues.

Aluminum Part	Male NPT x Female NPT Size
DAWS34	3/4" x 3/4"
DAWS10	1" x 1"
DAWS1414	1-1/4" x 1-1/4"
DAWS1514	1-1/2" x 1-1/4"
DAWS15	1-1/2" x 1-1/2"
DAWS22	2" x 2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
