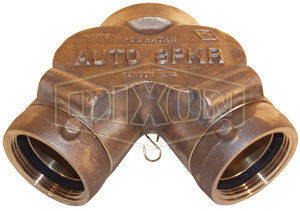

DCS4030NYFD Dixon Auto-Spkr Cast Brass Straight Double Clapper Siamese Connection - Back Outlet - 4" Female NPT Outlet x Two 3" Female NYFD Inlets

Name: DCS4030NYFD Dixon Auto-Spkr Cast Brass Straight Double Clapper Siamese Connection - Back Outlet - 4" Female NPT Outlet x Two 3" Female NYFD Inlets
Brand: Dixon
SKU: DCS4030NYFD Dixon
Price: 684.77 USD
Availability: InStock

Save $43.09

$727.86

$727.86 - $727.86

$727.86

$684.77

$684.77 - $684.77

$684.77

Dixon Fire Fittings
Double Clapper Siamese Connections - Back Outlet - Cast Brass

Provides the required 500 GPM minimum to supplement the fire protection as an auxiliary inlet connection to the water supply. (250 GPM minimum per inlet.)

Quantity

Specifications for Variant SKU: DCS4030NYFD Dixon
Shape (Orientation):	Y
Ends Configuration:	4in Female NPT, 3in Female NYFD
Material(s):	Brass

Features:
UL listed. Factory Mutual approved. ULC listed. Exposed Fire Department Connections (FDC) provide an economical method of satisfying local fire codes. Maximum operating pressure: 175 PSI at 70°F (21°C).


Size	A	B
4" x 2-1/2" x 2-1/2"	9-5/8"	12-1/4"
6" x 2-1/2" x 2-1/2"	10-1/4"	11-3/4"
4" x 3" x 3"	10"	12-1/2"
6" x 3" x 3"	10-3/8"	12-1/2"

Part Number	Branding	Finish	Outlet	(2) Inlets	Weight (Lbs.)
DCS4025F	AutoSprinkler	N/A	4" Female NPT	2-1/2" Female NST (NH)	16.0000
DCS4025F-P	AutoSprinkler	Polished	4" Female NPT	2-1/2" Female NST (NH)	16.0000
DCS4025F-C	AutoSprinkler	Polished Chrome Plated	4" Female NPT	2-1/2" Female NST (NH)	16.0000
DCS4025F-SP	StandPipe	N/A	4" Female NPT	2-1/2" Female NST (NH)	15.3600
DCS4025F-NB	No Branding	N/A	4" Female NPT	2-1/2" Female NST (NH)	15.0500
DCS4030F	AutoSprinkler	N/A	4" Female NPT	3" Female NST (NH)	20.8000
DCS4030NYFD	AutoSprinkler	N/A	4" Female NPT	3" Female NYFD	19.0000
DCS6025F	AutoSprinkler	N/A	6" Female NPT	2-1/2" Female NST (NH)	24.1500
DCS6025F-SP	StandPipe	N/A	6" Female NPT	2-1/2" Female NST (NH)	24.4000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
