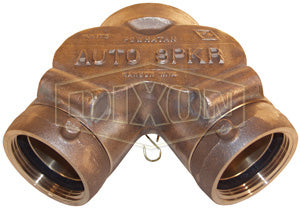

DCS4030F Dixon Auto-Spkr Cast Brass Straight Double Clapper Siamese Connection - Back Outlet - 4" Female NPT Outlet x Two 3" Female NST(NH) Inlets

DCS4030F Dixon Auto-Spkr Cast Brass Straight Double Clapper Siamese Connection - Back Outlet - 4" Female NPT Outlet x Two 3" Female NST(NH) Inlets

Save $456.90 Save $456.90
$1,142.25
$1,142.25 - $1,142.25
$1,142.25
$685.35
$685.35 - $685.35
$685.35

Dixon Fire Fittings
Double Clapper Siamese Connections - Back Outlet - Cast Brass

Provides the required 500 GPM minimum to supplement the fire protection as an auxiliary inlet connection to the water supply. (250 GPM minimum per inlet.)
Specifications for Variant SKU: DCS4030F Dixon
Shape (Orientation): Y
Ends Configuration: 4in Female NPT, 3in Female NST
Material(s): Brass
Features:
  • UL listed.
  • Factory Mutual approved.
  • ULC listed.
  • Exposed Fire Department Connections (FDC) provide an economical method of satisfying local fire codes.
  • Maximum operating pressure: 175 PSI at 70°F (21°C).
Size A B
4" x 2-1/2" x 2-1/2" 9-5/8" 12-1/4"
6" x 2-1/2" x 2-1/2" 10-1/4" 11-3/4"
4" x 3" x 3" 10" 12-1/2"
6" x 3" x 3" 10-3/8" 12-1/2"
Part Number Branding Finish Outlet (2) Inlets Weight
(Lbs.)
DCS4025F AutoSprinkler N/A 4" Female NPT 2-1/2" Female NST (NH) 16.0000
DCS4025F-P AutoSprinkler Polished 4" Female NPT 2-1/2" Female NST (NH) 16.0000
DCS4025F-C AutoSprinkler Polished Chrome Plated 4" Female NPT 2-1/2" Female NST (NH) 16.0000
DCS4025F-SP StandPipe N/A 4" Female NPT 2-1/2" Female NST (NH) 15.3600
DCS4025F-NB No Branding N/A 4" Female NPT 2-1/2" Female NST (NH) 15.0500
DCS4030F AutoSprinkler N/A 4" Female NPT 3" Female NST (NH) 20.8000
DCS4030NYFD AutoSprinkler N/A 4" Female NPT 3" Female NYFD 19.0000
DCS6025F AutoSprinkler N/A 6" Female NPT 2-1/2" Female NST (NH) 24.1500
DCS6025F-SP StandPipe N/A 6" Female NPT 2-1/2" Female NST (NH) 24.4000
