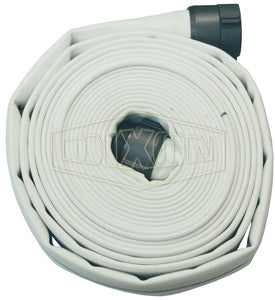

DM20100RAS Dixon Synthetic Double Jacket Mill Hose - Coupled - Fem. x Male NPSH Expansion Ring Couplings - 2" Hose Size - 2-5/16" Bowl Size - 100ft Length

DM20100RAS Dixon Synthetic Double Jacket Mill Hose - Coupled - Fem. x Male NPSH Expansion Ring Couplings - 2" Hose Size - 2-5/16" Bowl Size - 100ft Length

Save $31.81 Save $31.81
$286.29
$286.29 - $286.29
$286.29
$254.48
$254.48 - $254.48
$254.48

Dixon Fire Fittings
Synthetic Double Jacket Mill Hose - Coupled

Ideal for open end discharge applications, not intended for fire fighting service.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DM20100RAS Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 2in
Tubing Construction: PVC
Cover Construction: Polyester Textile Braid
Ends Configuration: 2in Male NPSH, 2in Female NPSH
Features:
  • Outer construction: double jacket, all polyester.
  • Tube construction: black, PVC rubber.
  • Rated pressure: 250 PSI at 70°F (21°C).
  • Working pressure: 200 PSI at 70°F (21°C).
  • Double jacket hoses are not recommended for use with field reattachable couplings.
Part Number Size Bowl Length Weight
(Lbs.)
Coupled with Female and Male NST(NH) Threads, Rocker Lug, Aluminum Expansion Ring Couplings
DM15-50RAF 1-1/2" 1-13/16" 50 ft 13.6000
DM15100RAF 1-1/2" 1-13/16" 100 ft 27.7000
DM25-50RAF 2-1/2" 2-7/8" 50 ft 23.1000
DM25100RAF 2-1/2" 2-7/8" 100 ft 53.1600
Coupled with Female and Male NPSH Threads, Rocker Lug, Aluminum Expansion Ring Couplings
DM15-50RAS 1-1/2" 1-13/16" 50 ft 15.3600
DM15100RAS 1-1/2" 1-13/16" 100 ft 26.0000
DM20-50RAS 2" 2-5/16" 50 ft 17.5000
DM20100RAS 2" 2-5/16" 100 ft 34.0000
DM25-50RAS 2-1/2" 2-7/8" 50 ft 23.5600
DM25100RAS 2-1/2" 2-7/8" 100 ft -
Coupled with Female x Male NPT Threads, Rocker Lug, Aluminum Expansion Ring Couplings
DM15-50RAT 1-1/2" 1-13/16" 50 ft 15.0850
DM15100RAT 1-1/2" 1-13/16" 100 ft 17.4010
DM20-50RAT 2" 2-5/16" 50 ft 21.0000
DM20100RAT 2" 2-5/16" 100 ft 39.0000
DM25-50RAT 2-1/2" 2-7/8" 50 ft 28.2500
Coupled with Female x Male (C & E) Global Aluminum Cam and Groove with Crimp Sleeve
DM15-50GAX 1-1/2" 1-13/16" 50 ft 14.5500
DM15100GAX 1-1/2" 1-13/16" 100 ft 27.0300
DM20-50GAX 2" 2-5/16" 50 ft 18.1580
DM20100GAX 2" 2-5/16" 100 ft 35.0000
