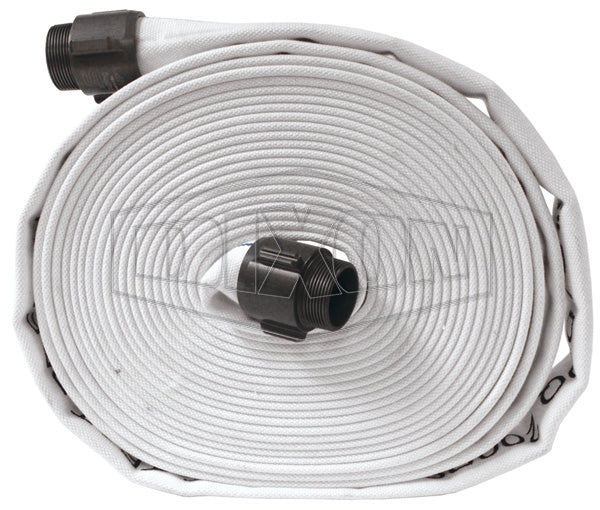

DM20100RAT Dixon Synthetic Double Jacket Mill Hose - Coupled - Male x Male NPT Expansion Ring Couplings - 2" Hose Size - 2-5/16" Bowl Size - 100ft Length

DM20100RAT Dixon Synthetic Double Jacket Mill Hose - Coupled - Male x Male NPT Expansion Ring Couplings - 2" Hose Size - 2-5/16" Bowl Size - 100ft Length

Save $37.85 Save $37.85
$325.62
$325.62 - $325.62
$325.62
$287.77
$287.77 - $287.77
$287.77

Dixon Fire Fittings
Synthetic Double Jacket Mill Hose - Coupled

Ideal for open end discharge applications, not intended for fire fighting service.
Specifications for Variant SKU: DM20100RAT Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 2in
Tubing Construction: PVC
Cover Construction: Polyester Textile Braid
Ends Configuration: 2in Male NYFD, 2in Female NYFD
Features:
  • Outer construction: double jacket, all polyester.
  • Tube construction: black, PVC rubber.
  • Rated pressure: 250 PSI at 70°F (21°C).
  • Working pressure: 200 PSI at 70°F (21°C).
  • Double jacket hoses are not recommended for use with field reattachable couplings.
Part Number Size Bowl Length Weight
(Lbs.)
Coupled with Female and Male NST(NH) Threads, Rocker Lug, Aluminum Expansion Ring Couplings
DM15-50RAF 1-1/2" 1-13/16" 50 ft 13.6000
DM15100RAF 1-1/2" 1-13/16" 100 ft 27.7000
DM25-50RAF 2-1/2" 2-7/8" 50 ft 23.1000
DM25100RAF 2-1/2" 2-7/8" 100 ft 53.1600
Coupled with Female and Male NPSH Threads, Rocker Lug, Aluminum Expansion Ring Couplings
DM15-50RAS 1-1/2" 1-13/16" 50 ft 15.3600
DM15100RAS 1-1/2" 1-13/16" 100 ft 26.0000
DM20-50RAS 2" 2-5/16" 50 ft 17.5000
DM20100RAS 2" 2-5/16" 100 ft 34.0000
DM25-50RAS 2-1/2" 2-7/8" 50 ft 23.5600
DM25100RAS 2-1/2" 2-7/8" 100 ft -
Coupled with Female x Male NPT Threads, Rocker Lug, Aluminum Expansion Ring Couplings
DM15-50RAT 1-1/2" 1-13/16" 50 ft 15.0850
DM15100RAT 1-1/2" 1-13/16" 100 ft 17.4010
DM20-50RAT 2" 2-5/16" 50 ft 21.0000
DM20100RAT 2" 2-5/16" 100 ft 39.0000
DM25-50RAT 2-1/2" 2-7/8" 50 ft 28.2500
Coupled with Female x Male (C & E) Global Aluminum Cam and Groove with Crimp Sleeve
DM15-50GAX 1-1/2" 1-13/16" 50 ft 14.5500
DM15100GAX 1-1/2" 1-13/16" 100 ft 27.0300
DM20-50GAX 2" 2-5/16" 50 ft 18.1580
DM20100GAX 2" 2-5/16" 100 ft 35.0000
