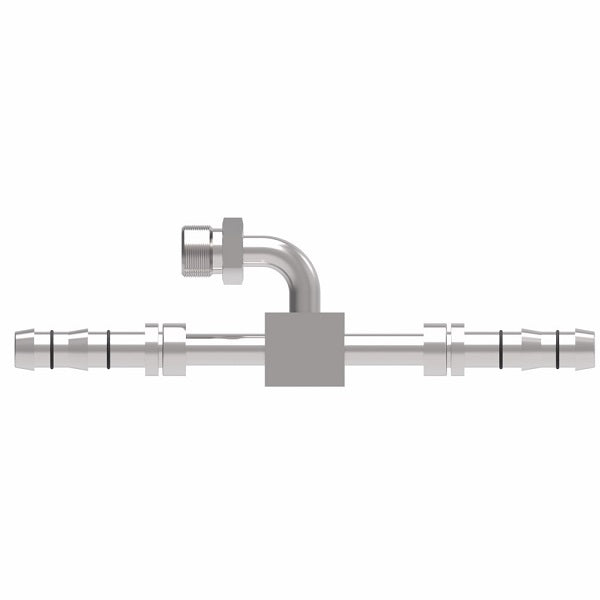

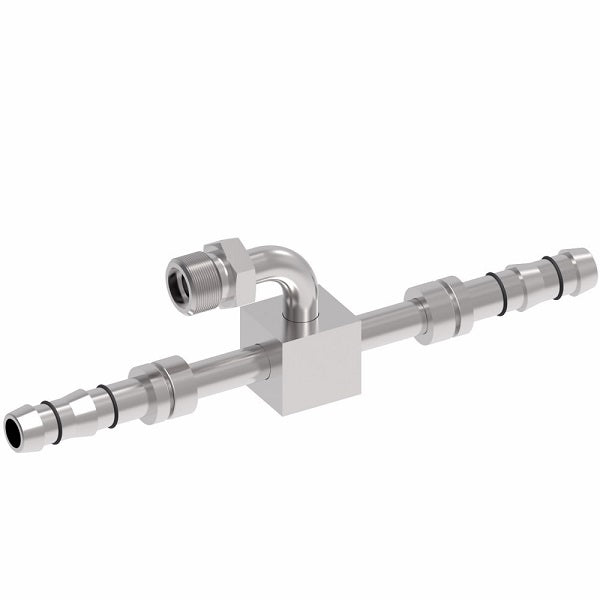

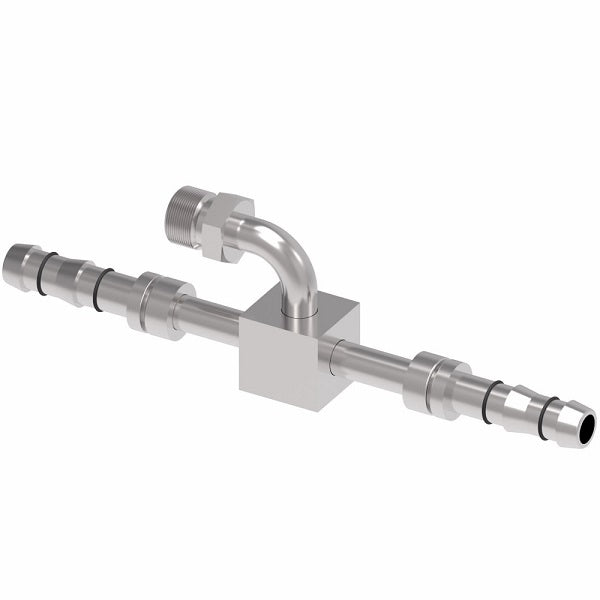

EJ3158-060808S E-Z Clip System by Danfoss | Male O-Ring Pilot Branch Connection Tee | A/C Refrigeration Fitting | -06 Male O-Ring Pilot x -08 Hose Barb x -08 Hose Barb | Steel
EJ3158-060808S E-Z Clip System by Danfoss | Male O-Ring Pilot Branch Connection Tee | A/C Refrigeration Fitting | -06 Male O-Ring Pilot x -08 Hose Barb x -08 Hose Barb | Steel
EJ3158-060808S E-Z Clip System by Danfoss | Male O-Ring Pilot Branch Connection Tee | A/C Refrigeration Fitting | -06 Male O-Ring Pilot x -08 Hose Barb x -08 Hose Barb | Steel
EJ3158-060808S E-Z Clip System by Danfoss | Male O-Ring Pilot Branch Connection Tee | A/C Refrigeration Fitting | -06 Male O-Ring Pilot x -08 Hose Barb x -08 Hose Barb | Steel

EJ3158-060808S E-Z Clip System by Danfoss | Male O-Ring Pilot Branch Connection Tee | A/C Refrigeration Fitting | -06 Male O-Ring Pilot x -08 Hose Barb x -08 Hose Barb | Steel

$127.63 - $127.63
$127.63
$127.63 - $127.63
$127.63

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring Pilot Branch Connection - Tee

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: EJ3158-060808S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
EJ3158-060808S 5/8-18 -08 6.86" 1.88" 1.14" 0.69" FF13820 22546-11 FF90178-11
EJ3158-080808S 3/4-16 -08 6.86" 1.89" 1.39" 0.81" FF13820 22546-13 FF90178-13
EJ3158-101212S 7/8-14 -12 5.67" 1.26" 1.49" 0.94" FF13822 22546-15 FF90178-15
EJ3158-121616S 1-1/16-14 -16 6.79" 1.72" 2.13" 1.13" FF14402 22546-17 FF90178-17
