EJ5360-1212S by Danfoss | Female 37° JIC Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

EJ5360-1212S by Danfoss | Female 37° JIC Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

Name: EJ5360-1212S by Danfoss | Female 37° JIC Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: EJ5360-1212S Danfoss
Price: 69.11 USD
Availability: InStock

$69.11 - $69.11

$69.11

$69.11 - $69.11

$69.11

Danfoss A/C & Refrigeration

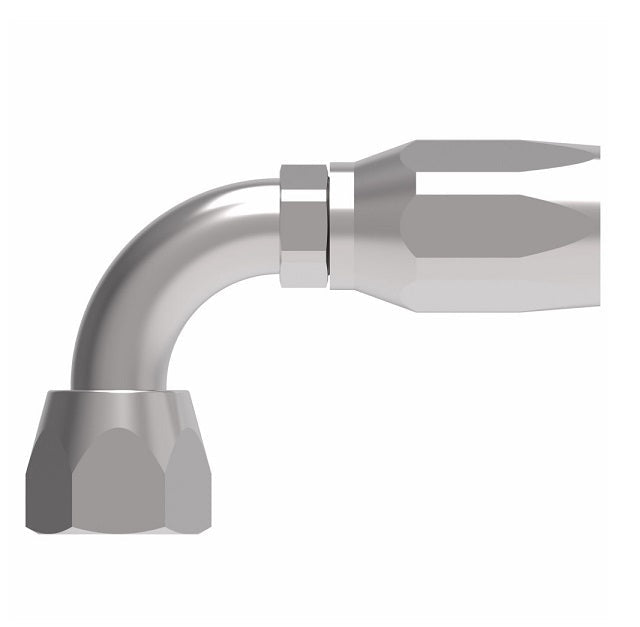

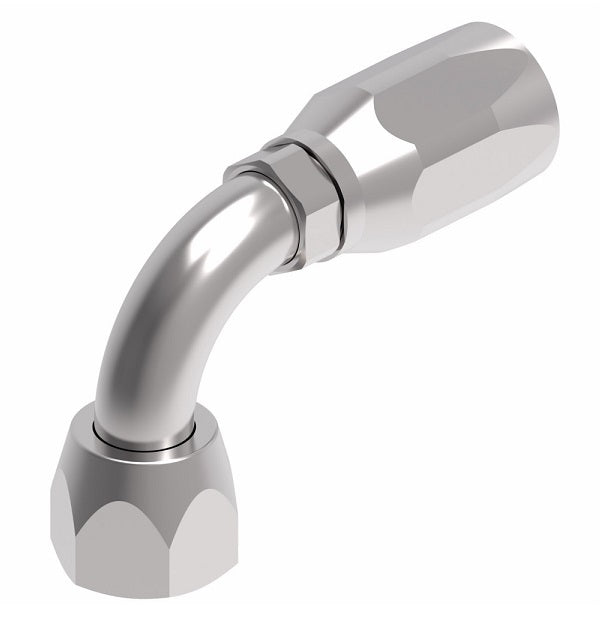

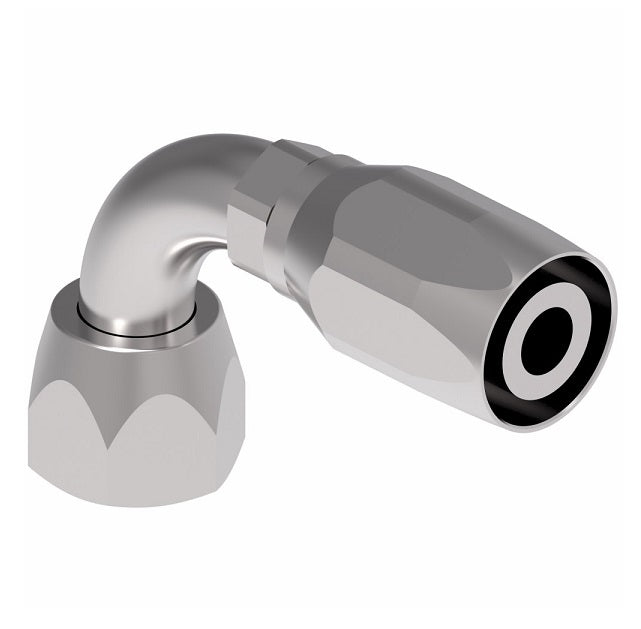

FC800 EverCool Series - Female 37° JIC Swivel Field Attachable Fitting - 90° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: EJ5360-1212S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC800 Series


Steel Part Number	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Drop dia.	Hole dia.	Hex	O-Ring ref
EJ5360-1212S	12"	12"	1-1/16x12	3.74"	2.17"	1.82"	0.47"	1-1/4"	FF91026-12
EJ5360-1616S	16"	16"	1-5/16x12	3.56"	2.29"	2.39"	0.69"	1-1/2"	FF91026-16
EJ5360-2020S	20"	20"	1-5/8x12	4.02"	2.65"	2.75"	0.95"	2"	FF91026-20
