EJ5360-2020S by Danfoss | Female 37° JIC swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC swivel x -20 Reusable Hose End | Steel

EJ5360-2020S by Danfoss | Female 37° JIC swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC swivel x -20 Reusable Hose End | Steel | Pack of 10

$1,237.20 - $1,237.20

$1,237.20

$1,237.20 - $1,237.20

$1,237.20

Danfoss A/C & Refrigeration

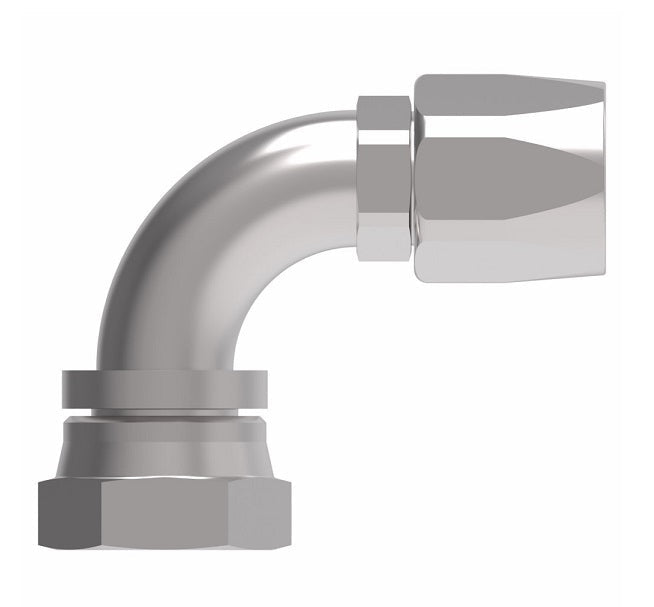

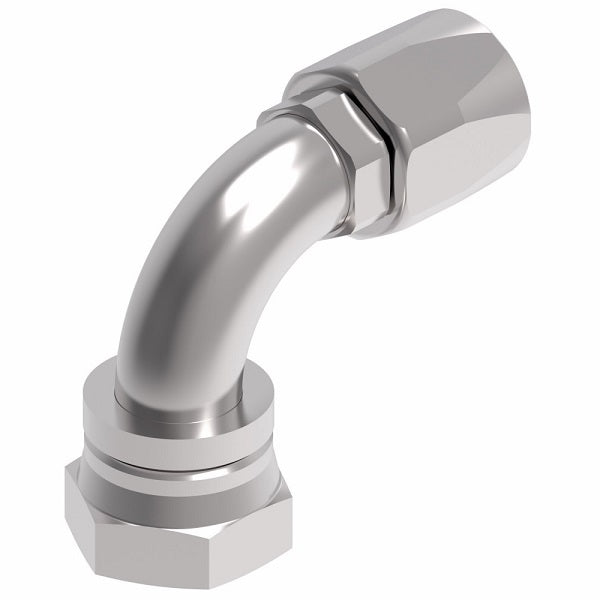

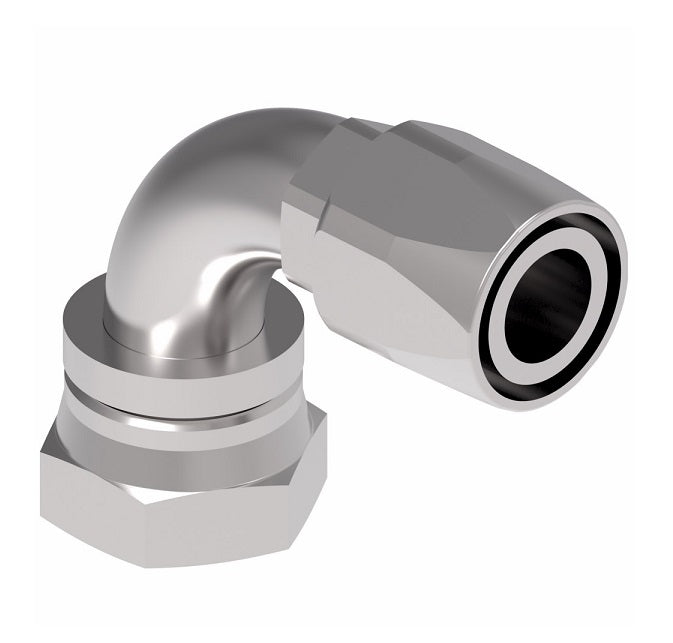

FC800 EverCool Series - Female 37° JIC Swivel Field Attachable Fitting - 90° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.

Package Quantity: 10 Units

Specifications for Variant SKU: EJ5360-2020S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Female JIC, 1-1/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC800 Series


Steel Part Number	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Drop dia.	Hole dia.	Hex	O-Ring ref
EJ5360-1212S	12"	12"	1-1/16x12	3.74"	2.17"	1.82"	0.47"	1-1/4"	FF91026-12
EJ5360-1616S	16"	16"	1-5/16x12	3.56"	2.29"	2.39"	0.69"	1-1/2"	FF91026-16
EJ5360-2020S	20"	20"	1-5/8x12	4.02"	2.65"	2.75"	0.95"	2"	FF91026-20

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
