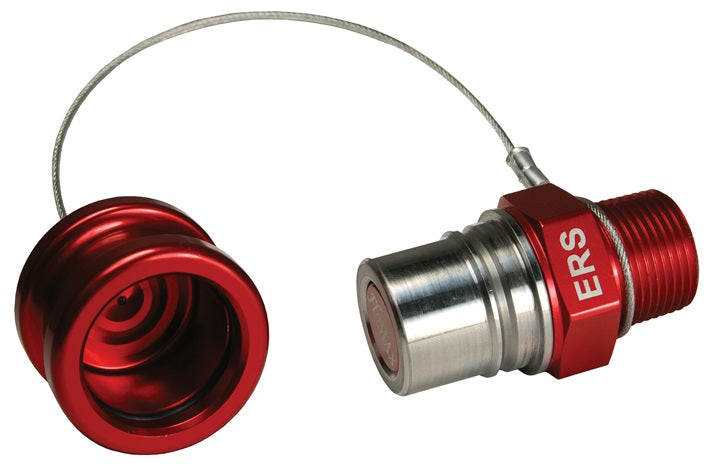

ERS-C by Dixon Valve | FloMAX Standard-Series | Engine Oil Receiver | with Cap | 3/4" Male NPT | Red | Anodized Aluminum

ERS-C by Dixon Valve | FloMAX Standard-Series | Engine Oil Receiver | with Cap | 3/4" Male NPT | Red | Anodized Aluminum

Save $22.74 Save $22.74
$204.65
$204.65 - $204.65
$204.65
$181.91
$181.91 - $181.91
$181.91

Dixon Valve
FloMAX Standard-Series | Engine Oil Receiver

Fully compatible and interchangeable with industry standards.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: ERS-C Dixon
Brand: FloMAX
Series: ERS Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT
Material(s): Anodized Aluminum, Stainless Steel
Features:
  • Bright red.
  • Universally fits both R-series and Standard series crankcase receivers.
  • Smooth actuation.
  • Larger diameter pullback lanyard.
  • Standard series connectors consist of four color-coded mating connectors.
  • Easily recognizable labeling.
  • Fully compatible and interchangeable with industry standards.
Construction:
  • All-metal construction with stainless steel wear components.
  • anodized aircraft grade aluminum non-wear components.
  • Incorporates 10 locking balls with a 40% deeper engagement.
  • Resistant to clogging with a greater ease of cleaning.
Engine Oil Nozzles
Part Number Description Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
ENBL Engine Oil Nozzle with Ball Lock 3/4" Male NPT 9S9273 OS2 N100
ENBL-P Engine Oil Nozzle with Ball Lock & Plug 3/4" Male NPT - OSP2 N100P
ENBL-PLUG Engine Oil Nozzle Plug - 9S9274 OP-12 P100
Engine Oil Receivers
Part Number Description Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
ERS Engine Oil Receiver 3/4" Male NPT 9S9271 ON2 R100
ERS-C Engine Oil Receiver with Cap 3/4" Male NPT - ONC2A R100C
ERS-CAP Engine Oil Receiver Cap - 9S9272 O3B12P C100
ERJ Engine Oil Receiver with JIC Bulkhead Base 3/4" Male JIC - ON6 -
ERJ-C Engine Oil Receiver with JIC Bulkhead Base & Cap 3/4" Male JIC - - -
