F-DINHX90-16-42 by Kurt Hydraulics | Female DIN Heavy Universal Seat | 90 Degree Tube | Swivel | for 1" Hose ID

Name: F-DINHX90-16-42 by Kurt Hydraulics | Female DIN Heavy Universal Seat | 90 Degree Tube | Swivel | for 1" Hose ID
Brand: Kurt Hydraulics
SKU: F-DINHX90-16-42 Kurt
Price: 34.75 USD
Availability: InStock

Save $4.34

$39.09

$39.09 - $39.09

$39.09

$34.75

$34.75 - $34.75

$34.75

by Kurt Hydraulics
F-DINHX90 - Din Heavy Universal Seat 90 deg. Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-DINHX90-16-42 Kurt
Shape (Orientation):	90 Degree
Ends Configuration:	1in Hose Barb, S42 Female DIN
Special Properties:	Swivel

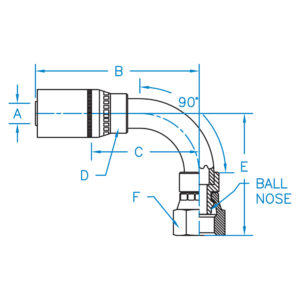

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
F-DINHX90-04-16	0.250	N/A	N/A	N/A	N/A	7/8	1/4"	M16 X 1.5
F-DINHX90-04-18	0.250	2.442	1.187	5/8	1.857	15/16	1/4"	M18 X 1.5
F-DINHX90-06-20	0.375	N/A	N/A	N/A	N/A	15/16	3/8"	M20 X 1.5
F-DINHX90-06-22	0.375	2.827	1.327	3/4	2.058	1-1/16	3/8"	M22 X 1.5
F-DINHX90-08-24	0.500	2.995	1.307	7/8	2.018	1-3/16	1/2"	M24 X 1.5
F-DINHX90-10-30	0.625	3.73	2.23	1-1/8	2.47	1-7/16	5/8"	M30 X 2.0
F-DINHX90-12-36	0.750	4.78	3.19	1-3/8	3.118	1-3/4	3/4"	M36 X 2.0
F-DINHX90-16-42	1.000	2.076	2.366	1-3/8	2.312	2.000	1.000"	M36 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
