F-DINLX45-06-18 by Kurt Hydraulics | Female DIN Light Universal Seat | 45° Elbow | Swivel | for 3/8" Hose ID

Name: F-DINLX45-06-18 by Kurt Hydraulics | Female DIN Light Universal Seat | 45° Elbow | Swivel | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: F-DINLX45-06-18 Kurt
Price: 14.69 USD
Availability: InStock

Save $1.84

$16.53

$16.53 - $16.53

$16.53

$14.69

$14.69 - $14.69

$14.69

by Kurt Hydraulics
F-DINLX45 - Din Light Universal Seat 45 deg. Bent Tube Female Swivel

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-DINLX45-06-18 Kurt
Series:	DINLX45 Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Hose Barb, L18 Female DIN
Special Properties:	Swivel

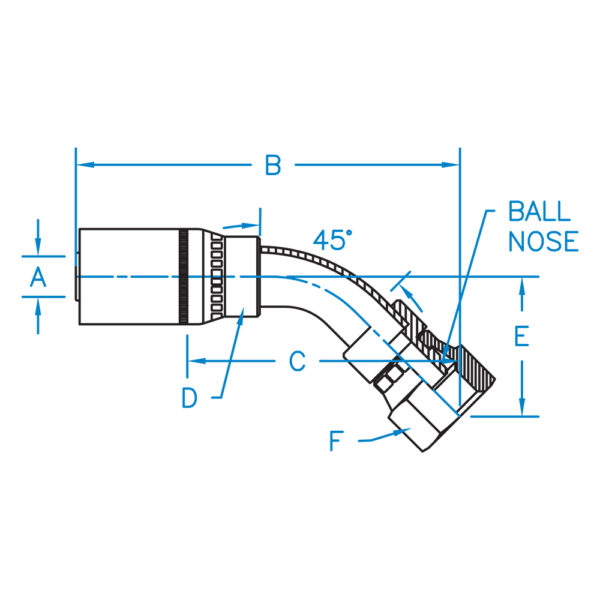

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
F-DINLX45-04-14	0.250	N/A	N/A	N/A	N/A	3/4	0.250"	M14 X 1.5
F-DINLX45-04-16	0.250	3.156	1.901	5/8	0.888	7/8	1/4"	M16 X 1.5
F-DINLX45-06-16	0.375	N/A	N/A	N/A	N/A	3/4	3/8"	M16 X 1.5
F-DINLX45-06-18	0.375	3.528	2.028	3/4	1.057	15/16	3/8"	M18 X 1.5
F-DINLX45-08-22	0.500	3.852	2.164	7/8	1.224	1-1/16	1/2"	M22 X 1.5
F-DINLX45-10-26	0.625	3.99	2.49	1-1/8	1.404	1-1/4	5/8"	M26 X 1.5
F-DINLX45-12-30	0.750	5.052	3.172	1-1/8	1.841	1-7/16	3/4"	M30 X 2.0
F-DINLX45-16-36	1.000	5.646	3.366	1-3/8	1.439	1-3/4	1.000"	M36 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
