F-DINLX90-06-16 by Kurt Hydraulics | Female DIN Light Universal Seat | 90 Degree Tube | Swivel | for 3/8" Hose ID

F-DINLX90-06-16 by Kurt Hydraulics | Female DIN Light Universal Seat | 90 Degree Tube | Swivel | for 3/8" Hose ID

Save $12.71 Save $12.71
$31.78
$31.78 - $31.78
$31.78
$19.07
$19.07 - $19.07
$19.07
by Kurt Hydraulics
F-DINLX90 - Din Light Universal Seat 90 deg. Bent Tube Female Swivel
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-DINLX90-06-16 Kurt
Series: Braided Coupling Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Hose Barb, L16 Female DIN
Special Properties: Swivel

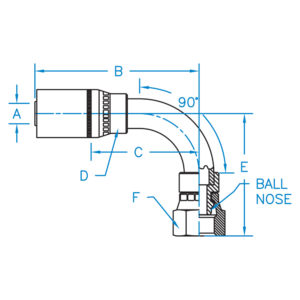

Part Number A B C D E F Hose ID
(In)		 Thread
F-DINLX90-04-14 0.250 N/A N/A N/A N/A N/A 1/4" M14 X 1.5
F-DINLX90-04-16 0.250 2.380 1.125 5/8 1.732 7/8 1/4" M16 x 1.5
F-DINLX90-06-16 0.375 N/A N/A N/A N/A 7/8 3/8" M16 X 1.5
F-DINLX90-06-18 0.375 3.38 1.88 3/4 1.98 15/16 3/8" M18 X 1.5
F-DINLX90-08-22 0.500 2.995 1.347 7/8 2.018 1-1/16 1/2" M22 X 1.5
F-DINLX90-10-26 0.625 3.317 1.437 1-1/8 2.396 1-1/4 5/8" M26 X 1.5
F-DINLX90-12-30 0.750 3.938 2.058 1-1/8 3.335 1-7/16 3/4" M30 X 2.0
F-DINLX90-16-36 1.000 5.431 3.151 1-3/8 3.218 1-3/4 1.000" M36 X 2.0


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
