F-JISX-16-16 by Kurt Hydraulics | Female JIS 30° Seat | Swivel | for 1" Hose ID

F-JISX-16-16 by Kurt Hydraulics | Female JIS 30° Seat | Swivel | for 1" Hose ID

Save $8.41 Save $8.41
$21.02
$21.02 - $21.02
$21.02
$12.61
$12.61 - $12.61
$12.61

by Kurt Hydraulics
F-JISX - JIS 30 deg. Female Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: F-JISX-16-16 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Special Properties: Swivel

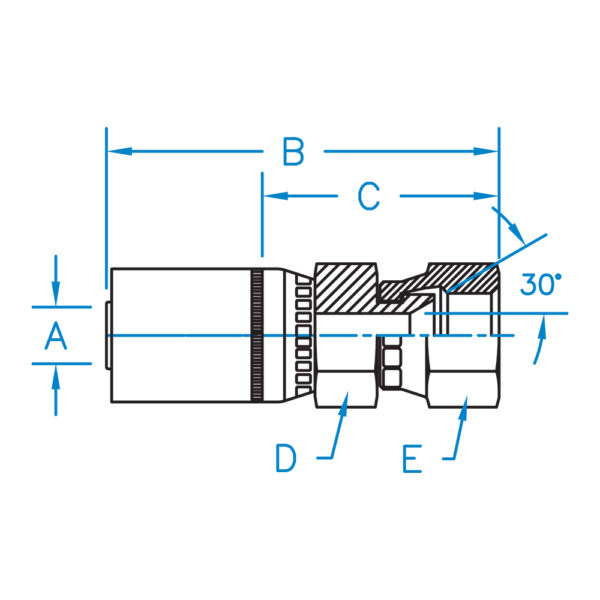

Part Number A B C D E Hose ID
(In)		 Thread
F-JISX-04-04 0.250 2.545 1.220 9/16 3/4 1/4" 1/4-19
F-JISX-06-06 0.375 2.826 1.326 11/16 7/8 3/8" 3/8-19
F-JISX-08-08 0.500 3.121 1.619 7/8 1.000 1/2" 1/2-14
F-JISX-10-10 0.625 3.242 1.743 1-1/8 1-1/4 5/8" 5/8-14
F-JISX-12-12 0.750 3.322 1.736 1-1/8 1-1/4 3/4" 3/4-14
F-JISX-16-16 1.000 3.456 1.722 1-3/8 1-1/2 1.000" 1-11

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
