F-JISX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIS 30° | Swivel | for 1" Hose ID

Name: F-JISX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIS 30° | Swivel | for 1" Hose ID
Brand: Kurt Hydraulics
SKU: F-JISX-16-16-WHP Kurt
Price: 55.99 USD
Availability: InStock

Save $7.00

$62.99

$62.99 - $62.99

$62.99

$55.99

$55.99 - $55.99

$55.99

by Kurt Hydraulics
F-JISX-WHP - JIS 30 deg. Female Swivel - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: F-JISX-16-16-WHP Kurt
Series:	F Series
Shape (Orientation):	Straight
Special Properties:	Swivel

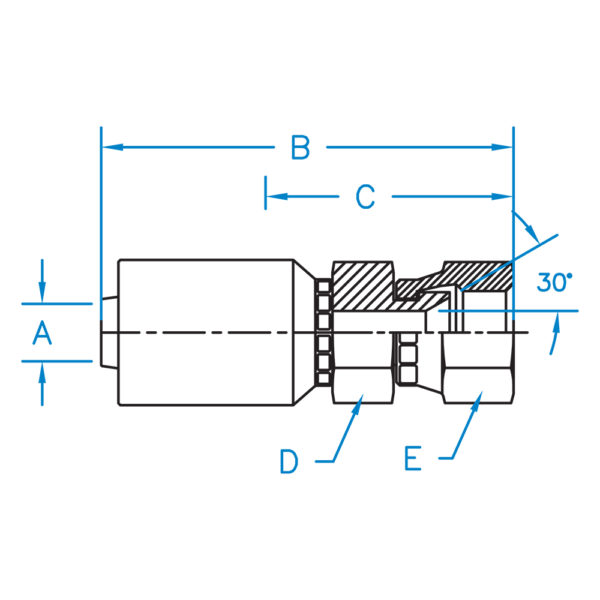

Part Number	A	B	C	D	E	Hose ID (In)	Thread
F-JISX-12-12-WHP	0.750	4.06	1.63	1-1/8	1-1/4	3/4"	3/4-14
F-JISX-16-16-WHP	1.000	4.251	1.721	1-3/8	1-1/2	1"	1-11

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
