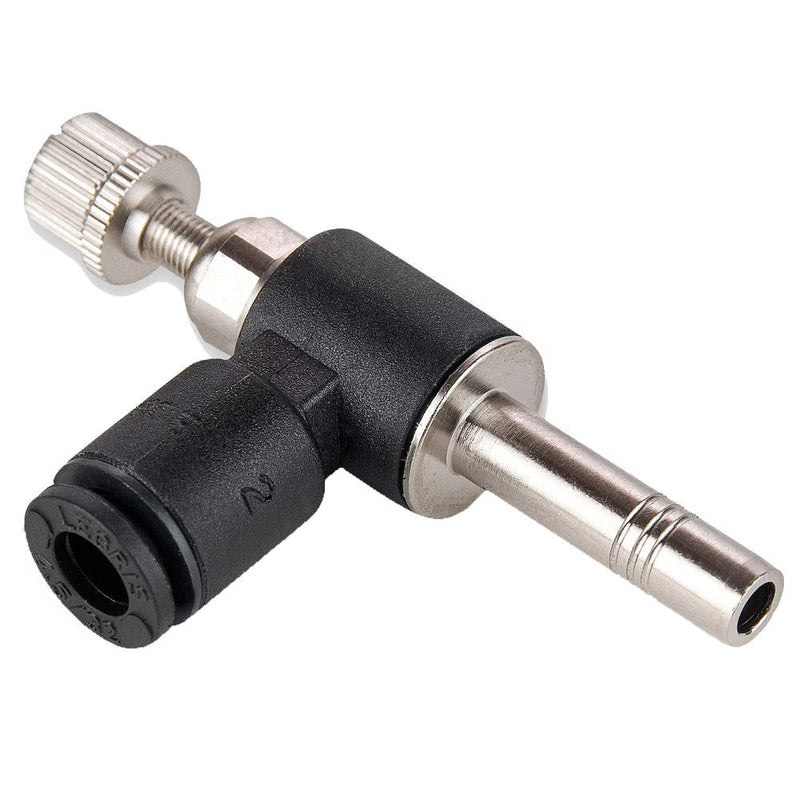

FCMSP731-4 by Parker | Plug-In Out Flow Controls | 1/4" Push-to-Connect x 1/4" Plug-In Stand Pipe | 1.91" Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $215.38

$538.45

$538.45 - $538.45

$538.45

$323.07

$323.07 - $323.07

$323.07

by Parker Hannifin
Plug-In Flow Controls:FCMSP731 Plug-In Mini Meter Out Flow Control

Package Quantity: 10 Units

Specifications for Variant SKU: FCMSP731-4 Parker \| 10 \|
Series:	FCMSP731 Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade, Valved, Flow Control

Product Features:	Glass reinforced nylon 6.6 body Stainless steel gripping ring Nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated tailpiece Nitrile D seal
Markets:	Factory/Process Automation Life Science Food Processing Water And Beverage Petrochemical
Applications:	Packaging Filling Dispensing Bottling Pneumatic Circuits
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	Hex	H Open	H Closed	H1	H2	L
FCMSP731-2	1/8"	6 mm	1.04"	.94"	.12"	.59"	.67"
FCMSP731-4	1/4"	7 mm	1.18"	1.08"	.12"	.73"	.73"
