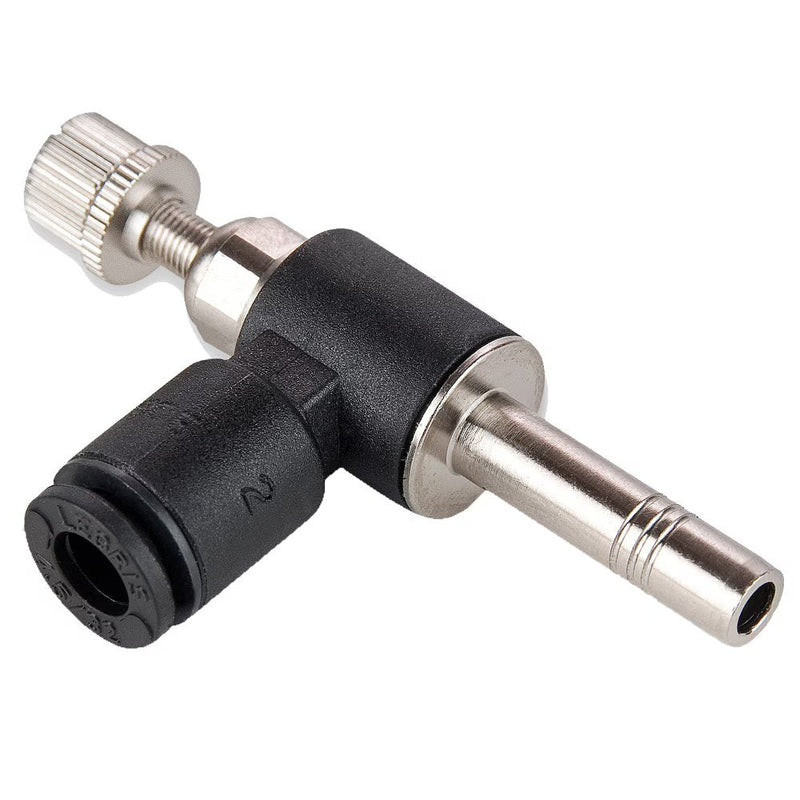

FCMSP731-2 by Parker | Plug-In Out Flow Controls | 1/8" Push-to-Connect x 1/8" Plug-In Stand Pipe | 1.63" Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $200.80

$502.00

$502.00 - $502.00

$502.00

$301.20

$301.20 - $301.20

$301.20

by Parker Hannifin
Plug-In Flow Controls:FCMSP731 Plug-In Mini Meter Out Flow Control

Package Quantity: 10 Units

Specifications for Variant SKU: FCMSP731-2 Parker \| 10 \|
Series:	FCMSP731 Series
Shape (Orientation):	90° Elbow
Material(s):	Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade, Valved, Flow Control

Product Features:	Glass reinforced nylon 6.6 body Stainless steel gripping ring Nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated tailpiece Nitrile D seal
Markets:	Factory/Process Automation Life Science Food Processing Water And Beverage Petrochemical
Applications:	Packaging Filling Dispensing Bottling Pneumatic Circuits
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	Hex	H Open	H Closed	H1	H2	L
FCMSP731-2	1/8"	6 mm	1.04"	.94"	.12"	.59"	.67"
FCMSP731-4	1/4"	7 mm	1.18"	1.08"	.12"	.73"	.73"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
