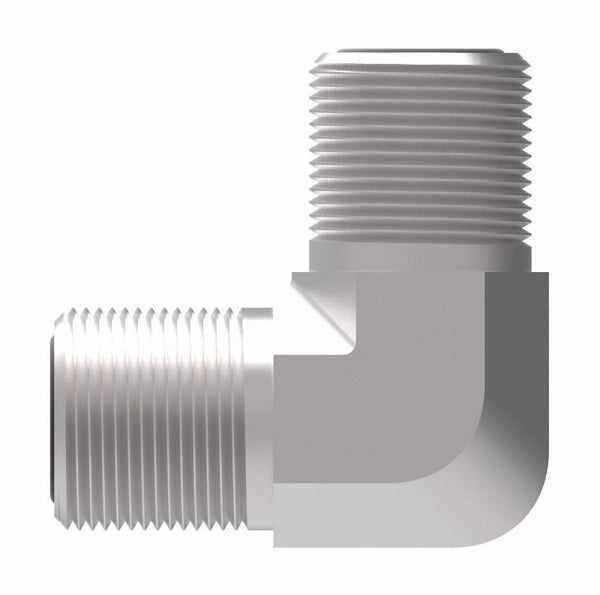

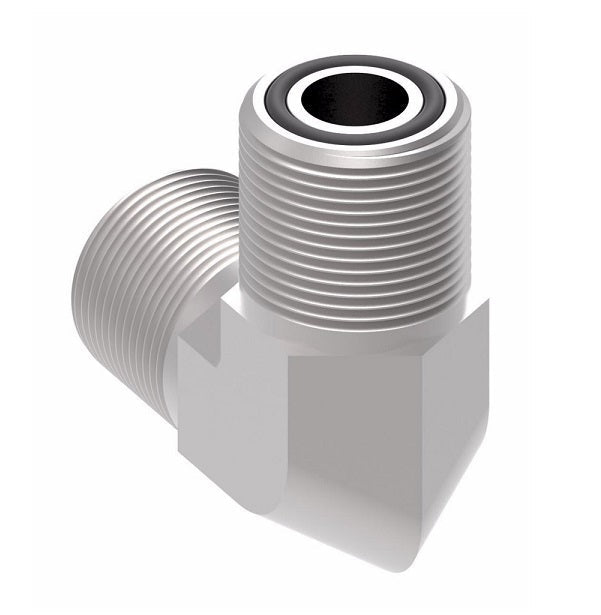

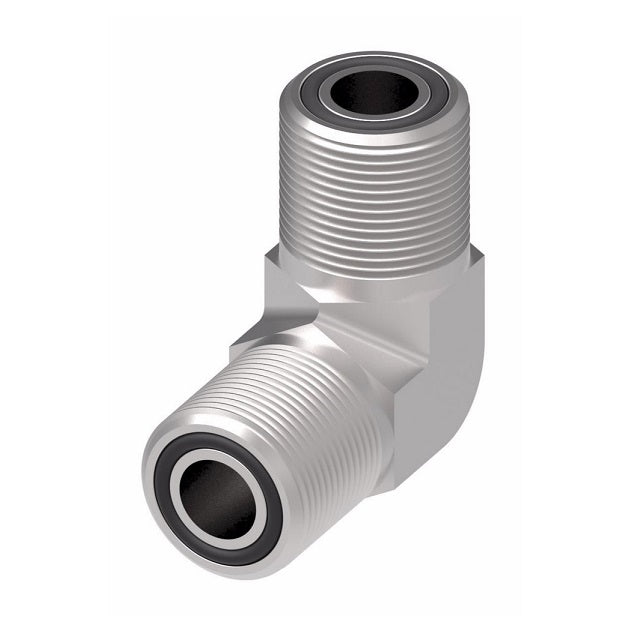

FF2035T0404S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel
FF2035T0404S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel
FF2035T0404S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel
FF2035T0404S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel

FF2035T0404S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal | Steel

$27.52 - $27.52
$27.52
$27.52 - $27.52
$27.52

Aeroquip® by Danfoss
ORS Male/ORS Male Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2035T0404S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male O-Ring Face Seal, 1/4in Male O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520201
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF2035T0404S 0.25" 9/16-18 9/16-18 0.85" 0.85"
FF2035T0604S 0.38" 11/16-16 9/16-18 0.98" 0.92"
FF2035T0606S 0.38" 11/16-16 11/16-16 0.98" 0.98"
FF2035T0808S 0.50" 13/16-16 13/16-16 1.10" 1.10"
FF2035T1010S 0.63" 1-14 1-14 1.31" 1.31"
FF2035T1212S 0.75" 1-3/16-12 1-3/16-12 1.47" 1.47"
FF2035T1616S 1.00" 1-7/16-12 1-7/16-12 1.64" 1.64"
FF2035T2020S 1.25" 1-11/16-12 1-11/16-12 1.76" 1.76"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
