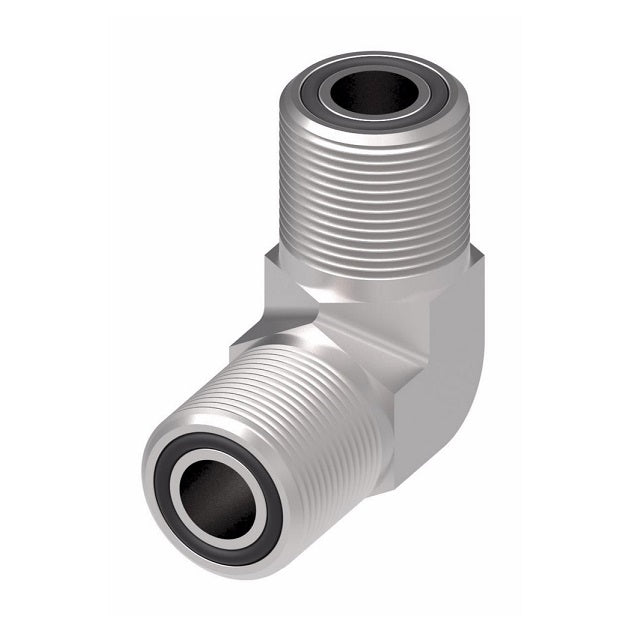

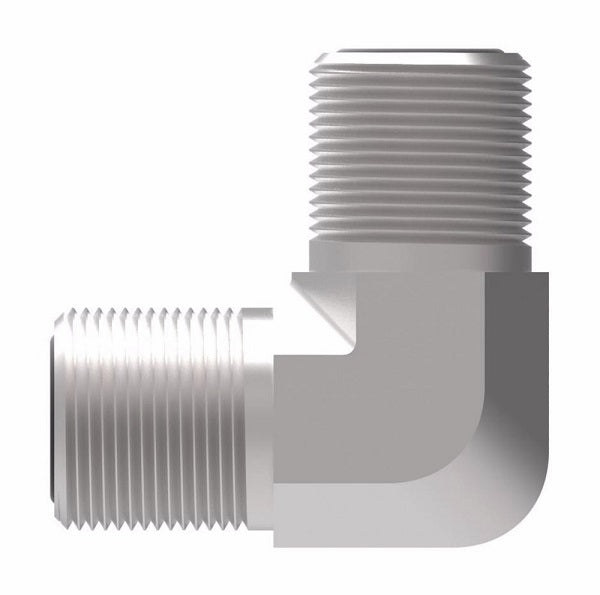

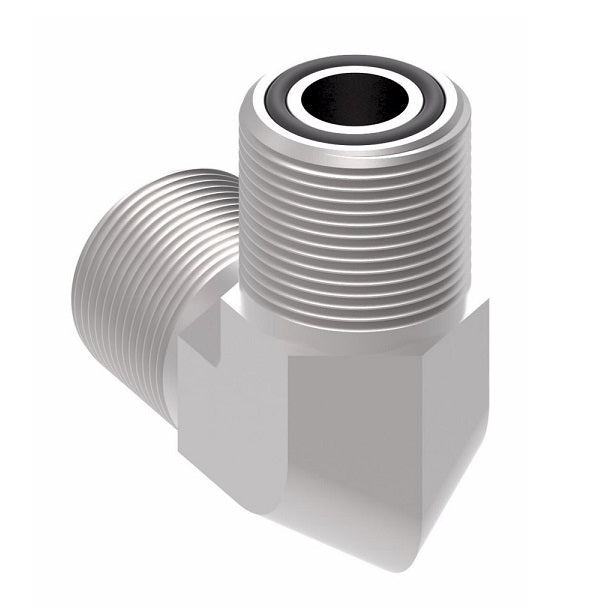

FF2035T1212S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel

FF2035T1212S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel

Name: FF2035T1212S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Adapter | -12 Male O-Ring Face Seal x -12 Male O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF2035T1212S Danfoss
Price: 30.2 USD
Availability: InStock

$30.20 - $30.20

$30.20

$30.20 - $30.20

$30.20

Aeroquip® by Danfoss
ORS Male/ORS Male Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2035T1212S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Face Seal
Material(s):	Steel

Specifications:
Ref. SAE 520201
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF2035T0404S	0.25"	9/16-18	9/16-18	0.85"	0.85"
FF2035T0604S	0.38"	11/16-16	9/16-18	0.98"	0.92"
FF2035T0606S	0.38"	11/16-16	11/16-16	0.98"	0.98"
FF2035T0808S	0.50"	13/16-16	13/16-16	1.10"	1.10"
FF2035T1010S	0.63"	1-14	1-14	1.31"	1.31"
FF2035T1212S	0.75"	1-3/16-12	1-3/16-12	1.47"	1.47"
FF2035T1616S	1.00"	1-7/16-12	1-7/16-12	1.64"	1.64"
FF2035T2020S	1.25"	1-11/16-12	1-11/16-12	1.76"	1.76"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
