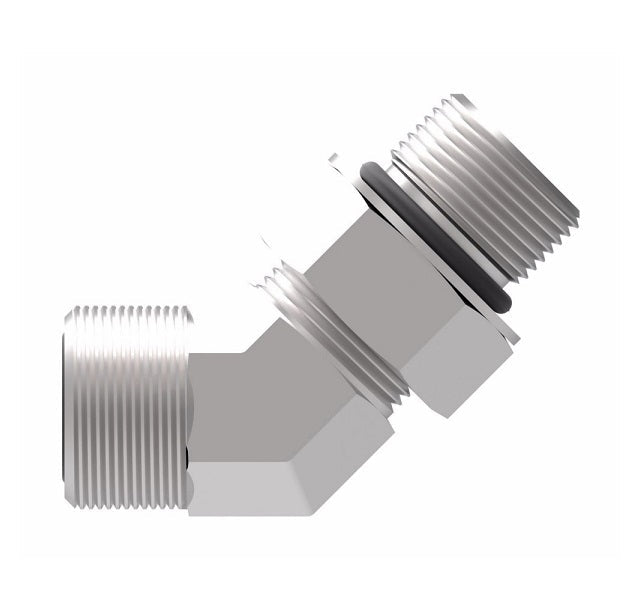

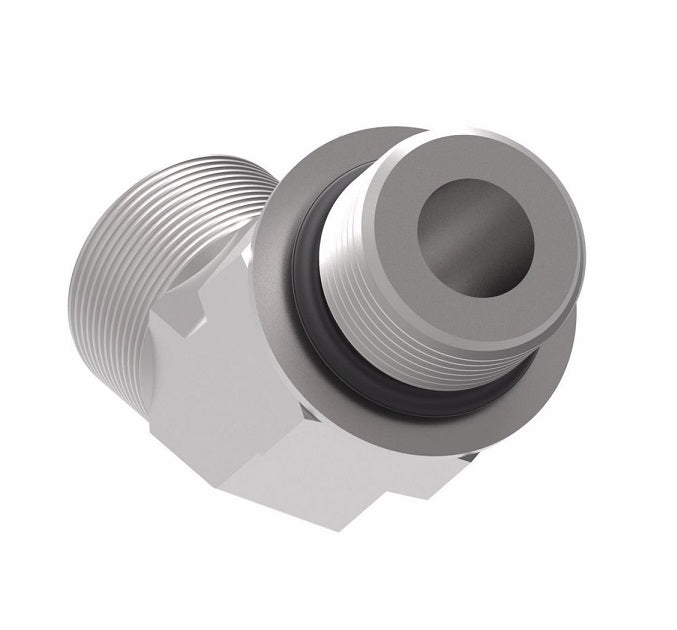

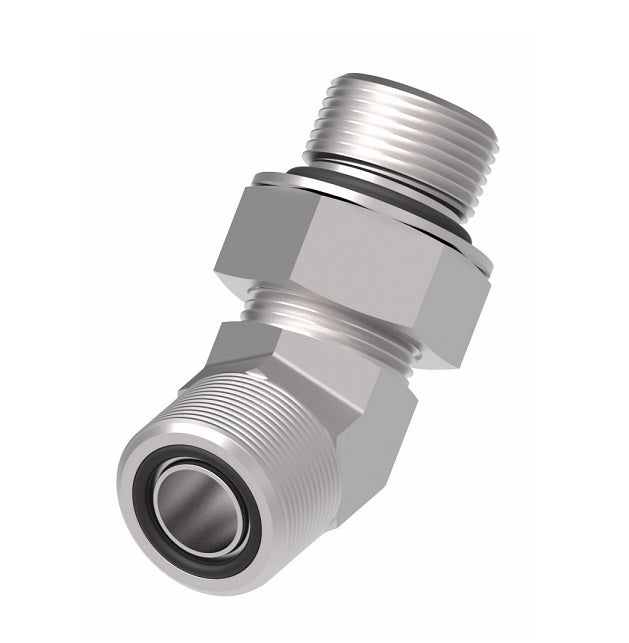

FF2068T1008S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 45° Elbow Adapter | -10 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel

FF2068T1008S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 45° Elbow Adapter | -10 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel

Name: FF2068T1008S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 45° Elbow Adapter | -10 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF2068T1008S Danfoss
Price: 10.44 USD
Availability: InStock

$10.44 - $10.44

$10.44

$10.44 - $10.44

$10.44

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss (adj.) Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2068T1008S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Male O-Ring Face Seal, 1/2in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 520320
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B	C
FF2068T0404S	0.25"	9/16-18	7/16-20	0.63"	1.18"	0.41"
FF2068T0406S	0.25"	9/16-18	9/16-18	0.68"	1.30"	0.46"
FF2068T0408S	0.25"	9/16-18	3/4-16	0.67"	1.43"	0.52"
FF2068T0604S	0.38"	11/16-16	7/16-20	0.74"	1.22"	0.41"
FF2068T0608S	0.38"	11/16-16	9/16-18	0.74"	1.30"	0.46"
FF2068T0608S	0.38"	11/16-16	3/4-16	0.74"	1.43"	0.52"
FF2068T0806S	0.50"	13/16-16	9/16-18	0.80"	1.27"	0.46"
FF2068T0808S	0.50"	13/16-16	3/4-16	0.80"	1.43"	0.52"
FF2068T0810S	0.50"	13/16-16	7/8-14	0.82"	1.76"	0.62"
FF2068T0816S	0.50"	13/16-16	1-5/16-12	1.01"	2.06"	0.71"
FF2068T1008S	0.63"	1-14	3/4-16	0.92"	1.59"	0.52"
FF2068T1010S	0.63"	1-14	7/8-14	0.92"	1.76"	0.62"
FF2068T1012S	0.63"	1-14	1-1/16-12	0.96"	1.97"	0.71"
FF1868T1210S	0.75"	1-3/16-12	7/8-14	1.02"	1.81"	0.62"
FF2068T1212S	0.75"	1-3/16-12	1-1/16-12	1.02"	1.97"	0.71"
FF2068T1216S	0.75"	1-3/16-12	1-5/16-12	1.16"	2.06"	0.71"
FF2068T1612S	1.00"	1-7/16-12	1-1/16-12	1.18"	2.03"	0.71"
FF2068T1616S	1.00"	1-7/16-12	1-5/16-12	1.18"	2.03"	0.71"
FF2068T1620S	1.00"	1-7/16-12	1-5/8-12	1.26"	2.11"	0.71"
FF2068T2020S	1.25"	1-11/16-12	1-5/8-12	1.26"	2.11"	0.71"
FF2068T2424S	1.50"	2-12	1-7/8-12	1.45"	2.11"	0.71"
