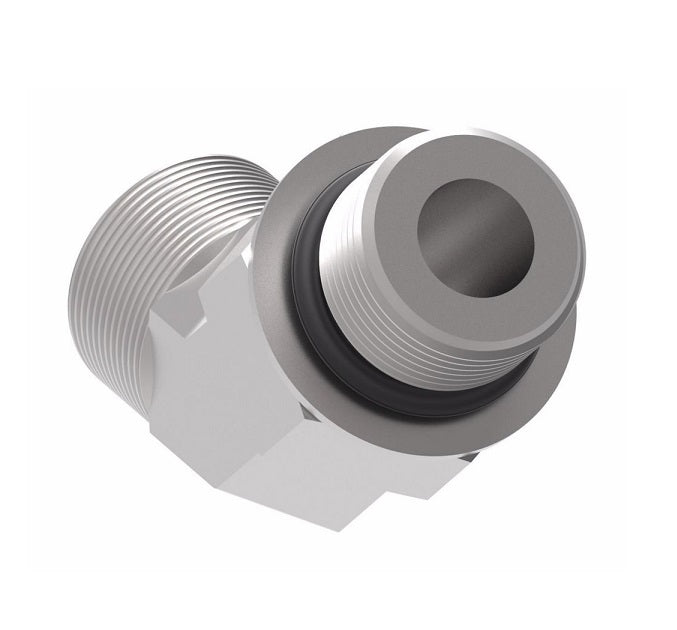

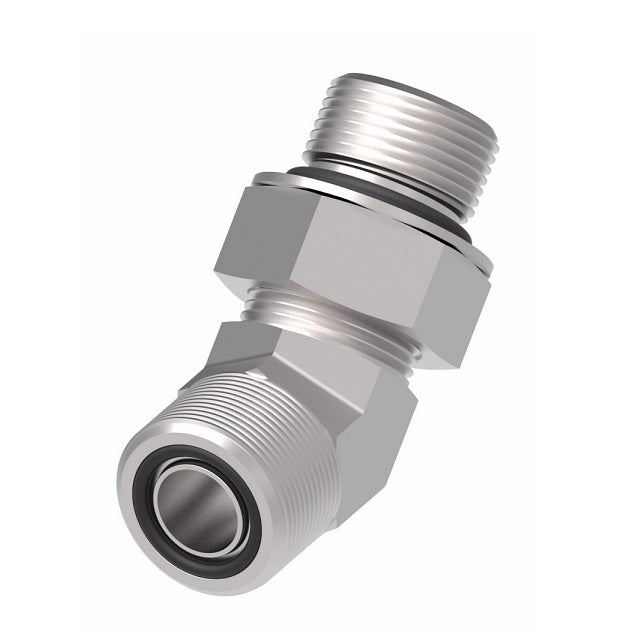

FF2068T2424S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 45° Elbow Adapter | -24 Male O-Ring Face Seal x -24 Male SAE O-Ring Boss | Steel

Original price $182.17 - Original price $182.17
Original price
$182.17
$182.17 - $182.17
Current price $182.17

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss (adj.) Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2068T2424S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Male O-Ring Face Seal, 1-1/2in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520320
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number
Tube OD Thread T1 Thread T2 A B C
FF2068T0404S 0.25" 9/16-18 7/16-20 0.63" 1.18" 0.41"
FF2068T0406S 0.25" 9/16-18 9/16-18 0.68" 1.30" 0.46"
FF2068T0408S 0.25" 9/16-18 3/4-16 0.67" 1.43" 0.52"
FF2068T0604S 0.38" 11/16-16 7/16-20 0.74" 1.22" 0.41"
FF2068T0608S 0.38" 11/16-16 9/16-18 0.74" 1.30" 0.46"
FF2068T0608S 0.38" 11/16-16 3/4-16 0.74" 1.43" 0.52"
FF2068T0806S 0.50" 13/16-16 9/16-18 0.80" 1.27" 0.46"
FF2068T0808S 0.50" 13/16-16 3/4-16 0.80" 1.43" 0.52"
FF2068T0810S 0.50" 13/16-16 7/8-14 0.82" 1.76" 0.62"
FF2068T0816S 0.50" 13/16-16 1-5/16-12 1.01" 2.06" 0.71"
FF2068T1008S 0.63" 1-14 3/4-16 0.92" 1.59" 0.52"
FF2068T1010S 0.63" 1-14 7/8-14 0.92" 1.76" 0.62"
FF2068T1012S 0.63" 1-14 1-1/16-12 0.96" 1.97" 0.71"
FF1868T1210S 0.75" 1-3/16-12 7/8-14 1.02" 1.81" 0.62"
FF2068T1212S 0.75" 1-3/16-12 1-1/16-12 1.02" 1.97" 0.71"
FF2068T1216S 0.75" 1-3/16-12 1-5/16-12 1.16" 2.06" 0.71"
FF2068T1612S 1.00" 1-7/16-12 1-1/16-12 1.18" 2.03" 0.71"
FF2068T1616S 1.00" 1-7/16-12 1-5/16-12 1.18" 2.03" 0.71"
FF2068T1620S 1.00" 1-7/16-12 1-5/8-12 1.26" 2.11" 0.71"
FF2068T2020S 1.25" 1-11/16-12 1-5/8-12 1.26" 2.11" 0.71"
FF2068T2424S 1.50" 2-12 1-7/8-12 1.45" 2.11" 0.71"
