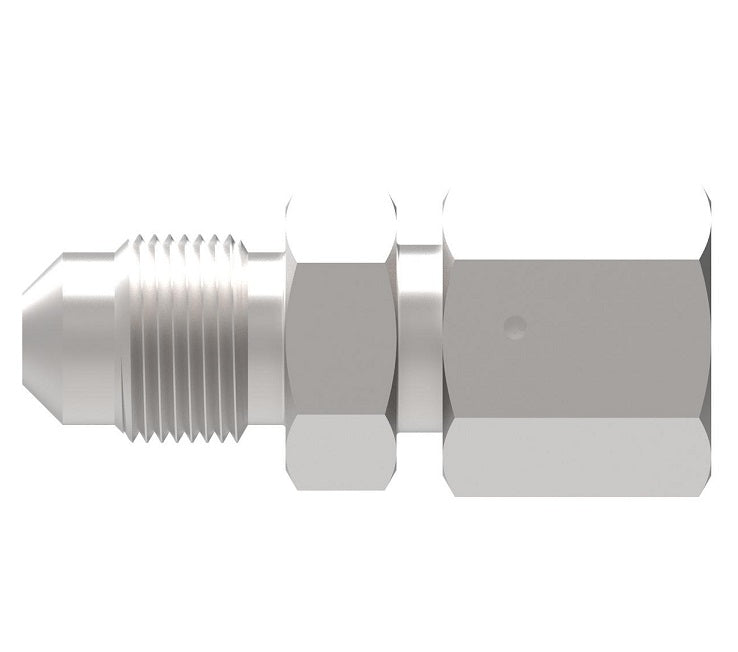

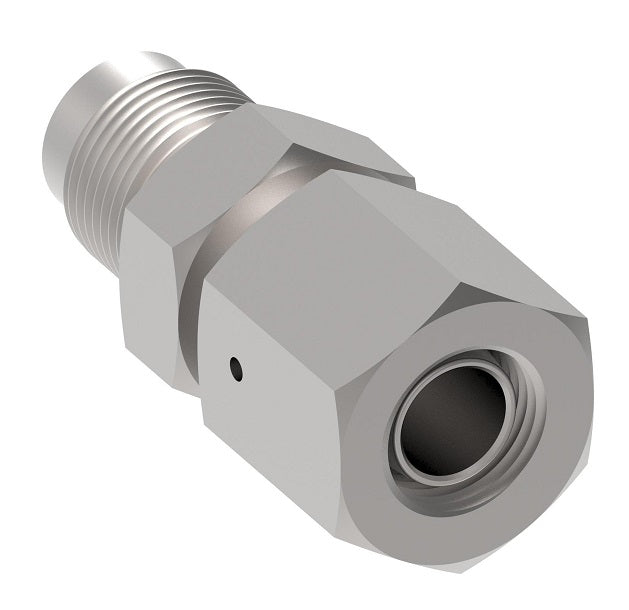

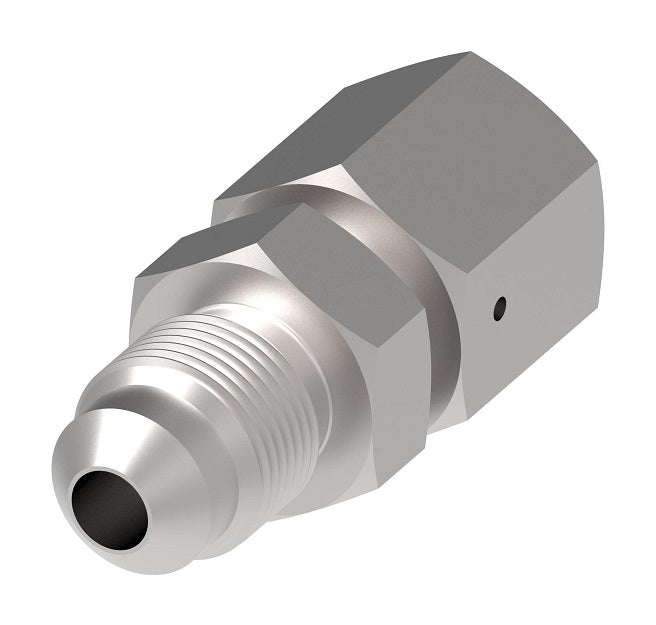

FF4281-1230S Aeroquip by Danfoss | JIC 37° Cone/Metric 24° Cone Adapter | -12 Male 37° JIC x M30 Female 24° Metric | Carbon Steel

FF4281-1230S Aeroquip by Danfoss | JIC 37° Cone/Metric 24° Cone Adapter | -12 Male 37° JIC x M30 Female 24° Metric | Carbon Steel

Name: FF4281-1230S Aeroquip by Danfoss | JIC 37° Cone/Metric 24° Cone Adapter | -12 Male 37° JIC x M30 Female 24° Metric | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4281-1230S Danfoss
Price: 10.97 USD
Availability: InStock

$10.97 - $10.97

$10.97

$10.97 - $10.97

$10.97

Aeroquip® by Danfoss
JIC 37° Cone/Metric 24° Cone Adapter
Male 37° JIC x Female 24° Metric
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF4281-1230S Danfoss
Brand:	Aeroquip
Material(s):	Carbon Steel

Specifications:
Ref. ISO 8434-2 / Performance per ISO 8434-1


Steel Part Number	Tube OD	Thread T1	Thread T2	A
FF4281-0416S	0.25"	7/16-20	M16 x 1.5	1.44"
FF4281-0618S	0.38"	9/16-18	M18 x 1.5	1.46"
FF4281-0620S	0.38"	9/16-18	M20 x 1.5	1.48"
FF4281-0820S	0.50"	1/2-14	M20 x 1.5	1.65"
FF4281-0824S	0.50"	1/2-14	M24 x 1.5	1.75"
FF4281-1230S	0.75"	1-1/16-12	M30 x 2	2.17"
FF4281-1236S	0.75"	1-1/16-12	M36 x 2	2.17"
FF4281-1636S	1.00"	1-5/16-12	M36 x 2	2.20"
FF4281-1642S	1.00"	1-5/16-12	M42 x 2	2.32"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
