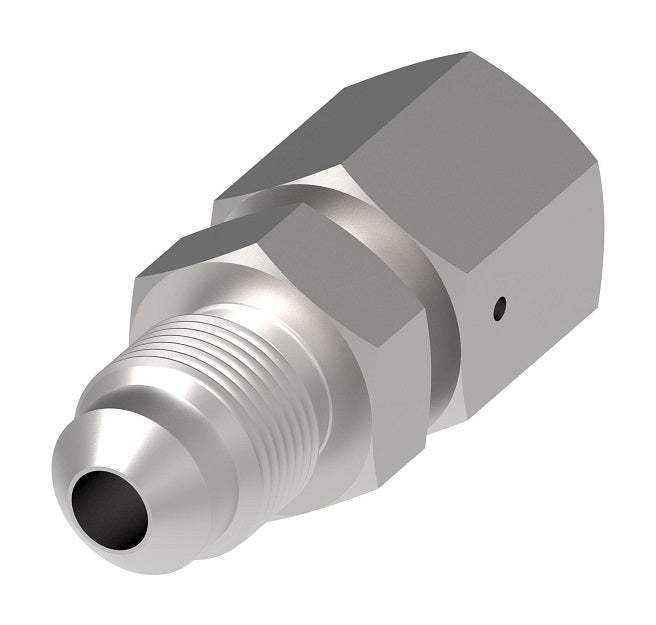

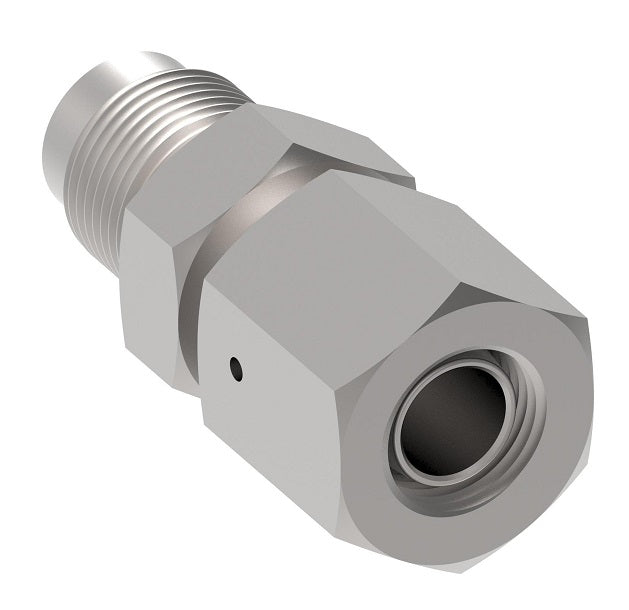

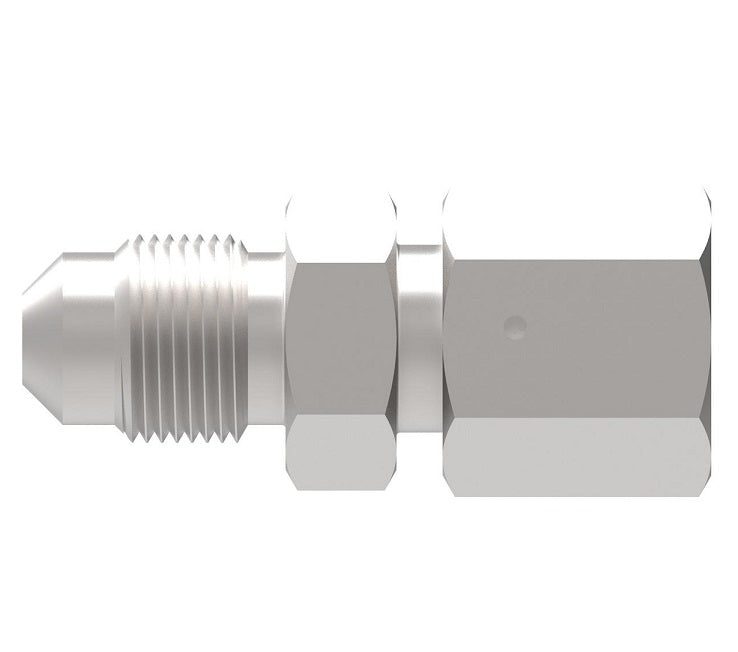

FF4281-0824S Aeroquip by Danfoss | JIC 37° Cone/Metric 24° Cone Adapter | -08 Male 37° JIC x M24 Female 24° Metric | Carbon Steel

FF4281-0824S Aeroquip by Danfoss | JIC 37° Cone/Metric 24° Cone Adapter | -08 Male 37° JIC x M24 Female 24° Metric | Carbon Steel

Name: FF4281-0824S Aeroquip by Danfoss | JIC 37° Cone/Metric 24° Cone Adapter | -08 Male 37° JIC x M24 Female 24° Metric | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4281-0824S Danfoss
Price: 3.3 USD
Availability: InStock

$3.30 - $3.30

$3.30

$3.30 - $3.30

$3.30

Aeroquip® by Danfoss
JIC 37° Cone/Metric 24° Cone Adapter
Male 37° JIC x Female 24° Metric
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4281-0824S Danfoss
Brand:	Aeroquip
Material(s):	Carbon Steel

Specifications:
Ref. ISO 8434-2 / Performance per ISO 8434-1


Steel Part Number	Tube OD	Thread T1	Thread T2	A
FF4281-0416S	0.25"	7/16-20	M16 x 1.5	1.44"
FF4281-0618S	0.38"	9/16-18	M18 x 1.5	1.46"
FF4281-0620S	0.38"	9/16-18	M20 x 1.5	1.48"
FF4281-0820S	0.50"	1/2-14	M20 x 1.5	1.65"
FF4281-0824S	0.50"	1/2-14	M24 x 1.5	1.75"
FF4281-1230S	0.75"	1-1/16-12	M30 x 2	2.17"
FF4281-1236S	0.75"	1-1/16-12	M36 x 2	2.17"
FF4281-1636S	1.00"	1-5/16-12	M36 x 2	2.20"
FF4281-1642S	1.00"	1-5/16-12	M42 x 2	2.32"
