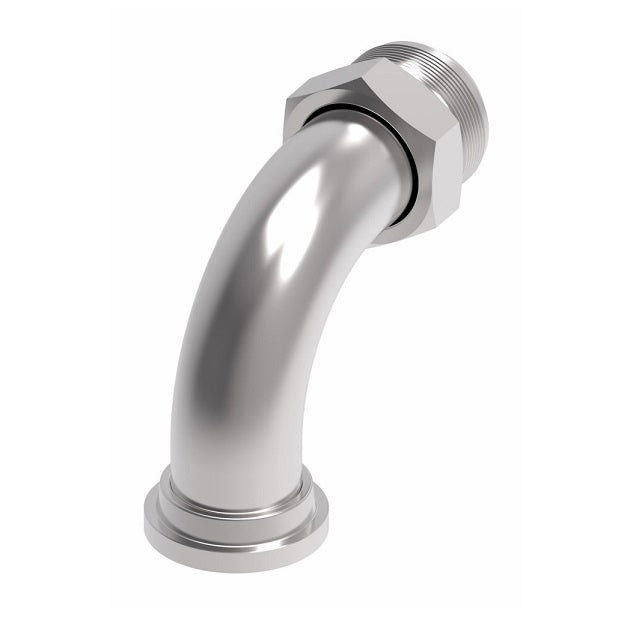

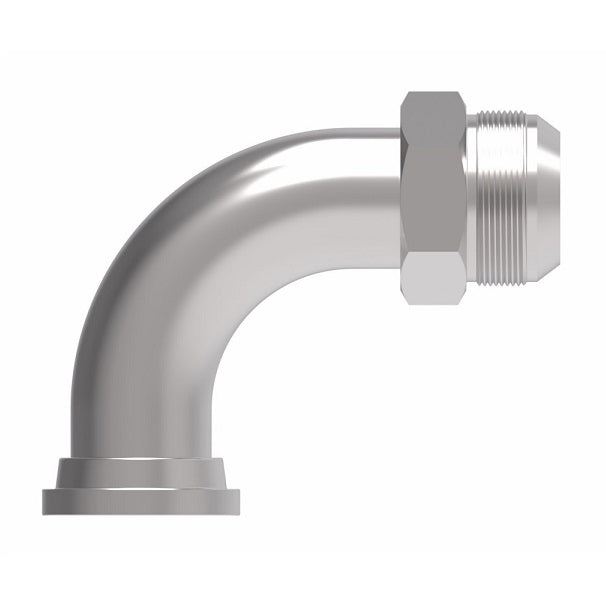

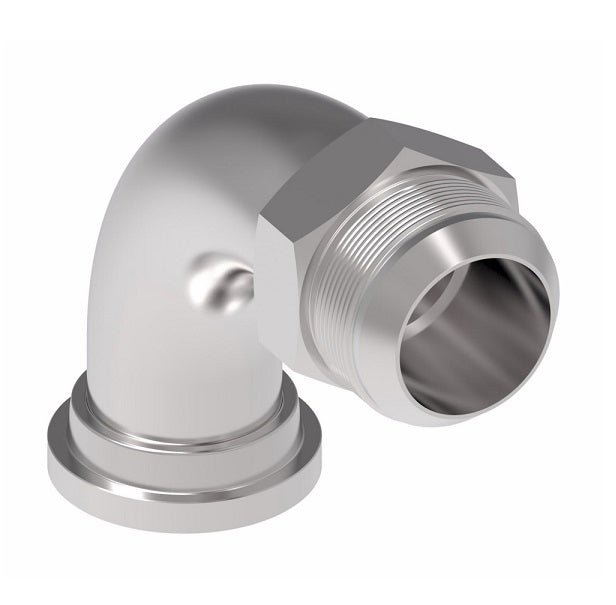

FF5162-0808S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -08 Code 61 Split Flange x -08 Male 37° JIC Flare | Steel

Name: FF5162-0808S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -08 Code 61 Split Flange x -08 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: FF5162-0808S Danfoss
Price: 69.46 USD
Availability: InStock

$69.46 - $69.46

$69.46

$69.46 - $69.46

$69.46

Aeroquip® by Danfoss
Code 61 Split Flange/37° JIC Flare Long Adapter
Code 61 Split Flange x Male 37° JIC Flare
Standard Pressure Series
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF5162-0808S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Code 61 Flange, 1/2in Male JIC
Material(s):	Steel

Note:
The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514. Mates with 449-74446 flanges.


Part Number Steel	Split Flange Size	Tube O.D.	Thread T	A	B
FF5162-0808S	1/2"	0.50"	3/4-16	2.16"	1.62"
FF5162-1212S	3/4"	0.75"	1-1/16-12	2.81"	2.13"
FF5162-1612S	1"	0.75"	1-1/16-12	2.81"	2.13"
FF5162-1616S	1"	1.00"	1-5/16-12	3.41"	2.38"
FF5162-1620S	1"	1.25"	1-5/8-12	3.46"	2.38"
FF5162-2016S	1-1/4"	1.00"	1-5/16-12	3.41"	2.38"
FF5162-2020S	1-1/4"	1.25"	1-5/8-12	3.71"	2.62"
FF5162-2420S	1-1/2"	1.25"	1-5/8-12	3.71"	2.62"
FF5162-2424S	1-1/2"	1.50"	1-7/8-12	4.33"	3.12"
FF5162-3232S	2"	2.00"	2-1/2-12	5.71"	4.50"
