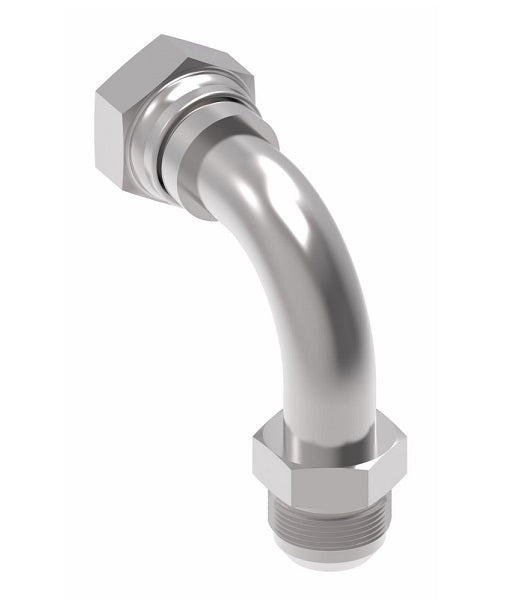

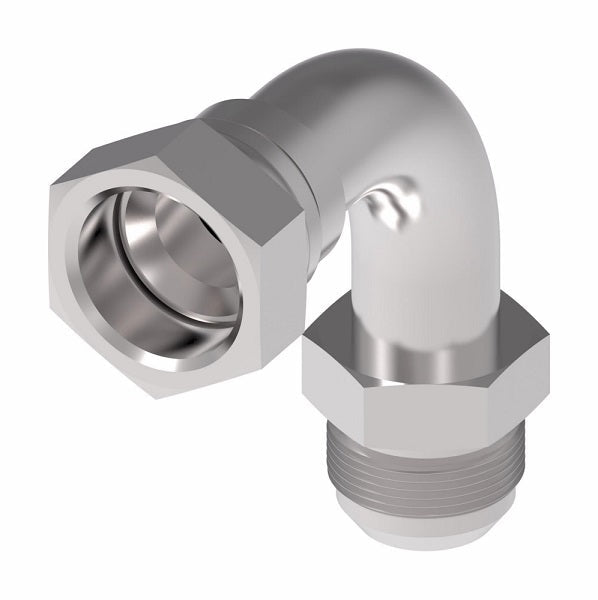

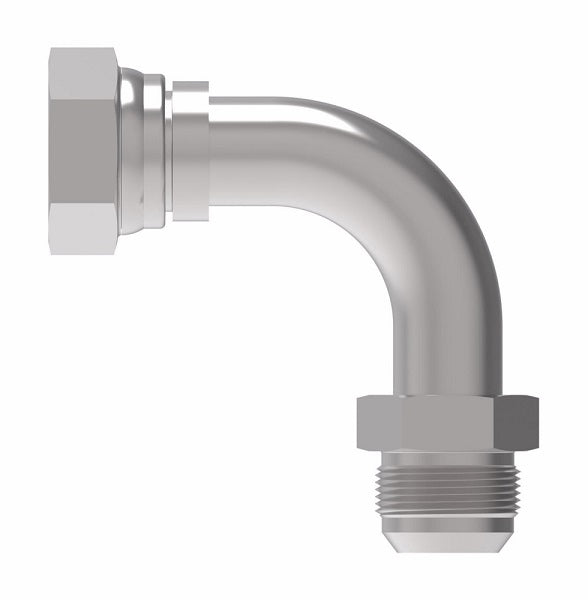

FF5163-0808S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare | Steel

FF5163-0808S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare | Steel

Name: FF5163-0808S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: FF5163-0808S Danfoss
Price: 39.66 USD
Availability: InStock

$39.66 - $39.66

$39.66

$39.66 - $39.66

$39.66

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF5163-0808S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Male JIC
Material(s):	Steel
Special Properties:	Swivel


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
FF5163-0808S	0.50"	3/4-16	3/4-16	1.87"	2.16"
FF5163-1212S	0.75"	1-1/16-12	1-1/16-12	2.35"	2.81"
FF5163-1616S	1.00"	1-5/16-12	1-5/16-12	3.04"	3.41"
FF5163-2020S	1.25"	1-5/8-12	1-5/8-12	3.40"	3.71"
FF5163-2424S	1.50"	1-7/8-12	1-7/8-12	3.95"	4.33"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
