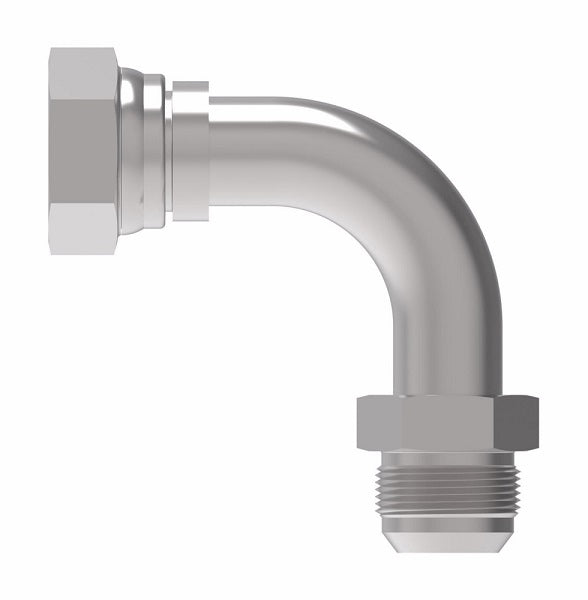

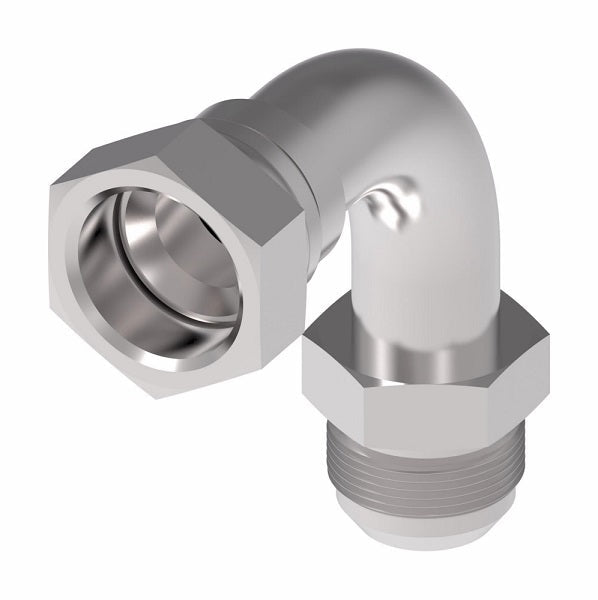

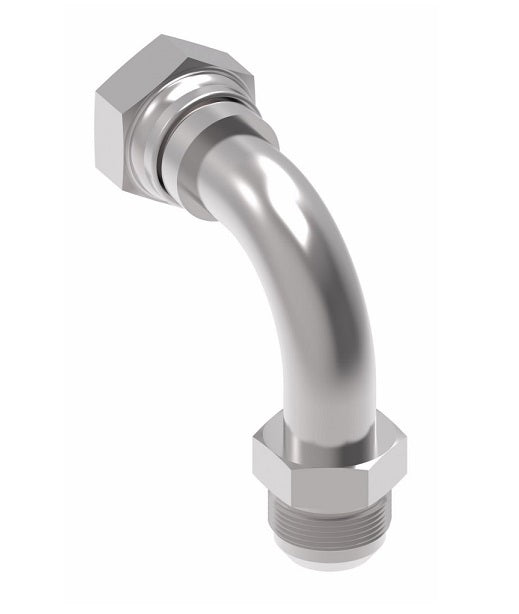

FF5163-2020S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -20 Female 37° JIC Flare Swivel x -20 Male 37° JIC Flare | Steel

FF5163-2020S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -20 Female 37° JIC Flare Swivel x -20 Male 37° JIC Flare | Steel

Name: FF5163-2020S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -20 Female 37° JIC Flare Swivel x -20 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: FF5163-2020S Danfoss
Price: 129.55 USD
Availability: InStock

$129.55 - $129.55

$129.55

$129.55 - $129.55

$129.55

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF5163-2020S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Female JIC, 1-1/4in Male JIC
Material(s):	Steel
Special Properties:	Swivel


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
FF5163-0808S	0.50"	3/4-16	3/4-16	1.87"	2.16"
FF5163-1212S	0.75"	1-1/16-12	1-1/16-12	2.35"	2.81"
FF5163-1616S	1.00"	1-5/16-12	1-5/16-12	3.04"	3.41"
FF5163-2020S	1.25"	1-5/8-12	1-5/8-12	3.40"	3.71"
FF5163-2424S	1.50"	1-7/8-12	1-7/8-12	3.95"	4.33"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
